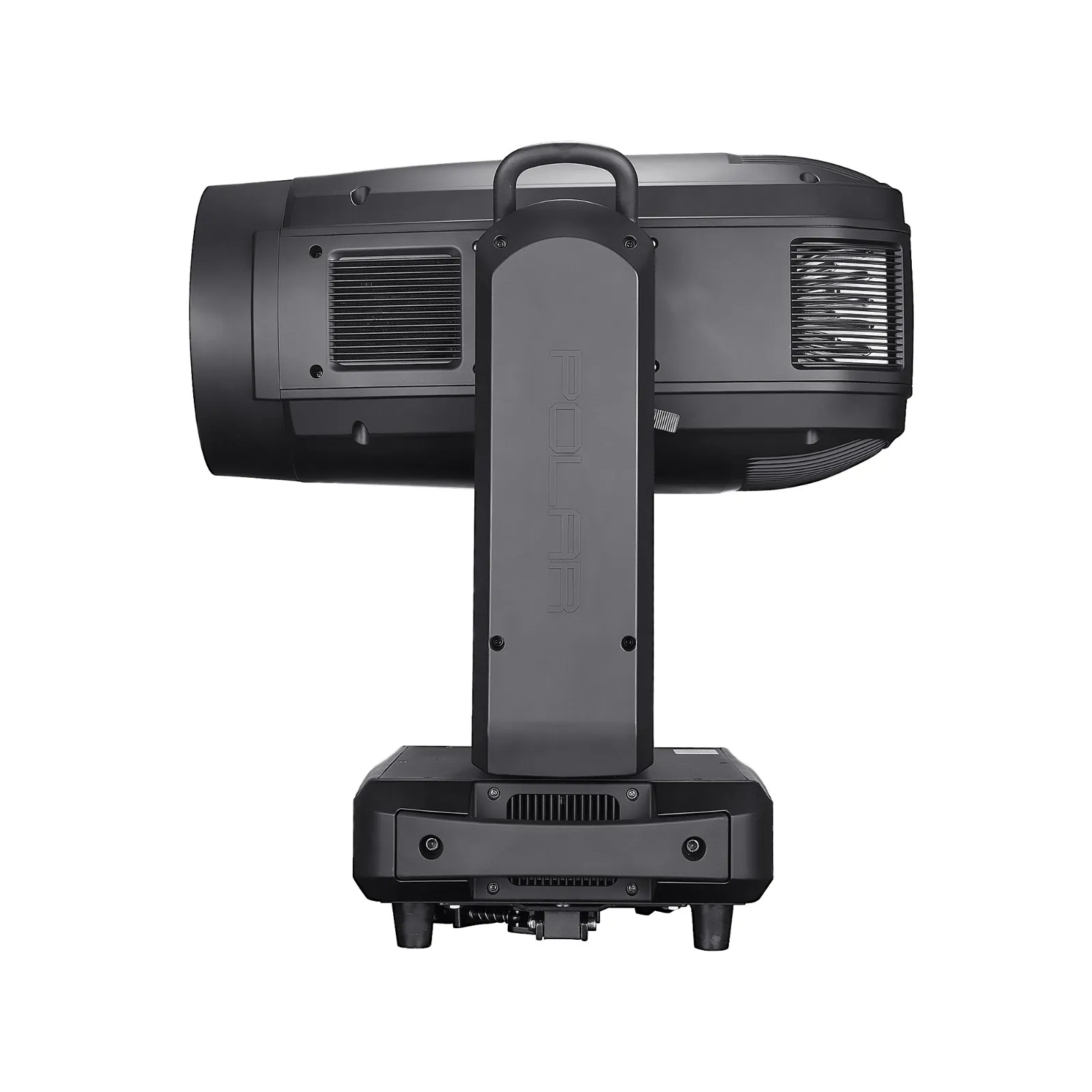

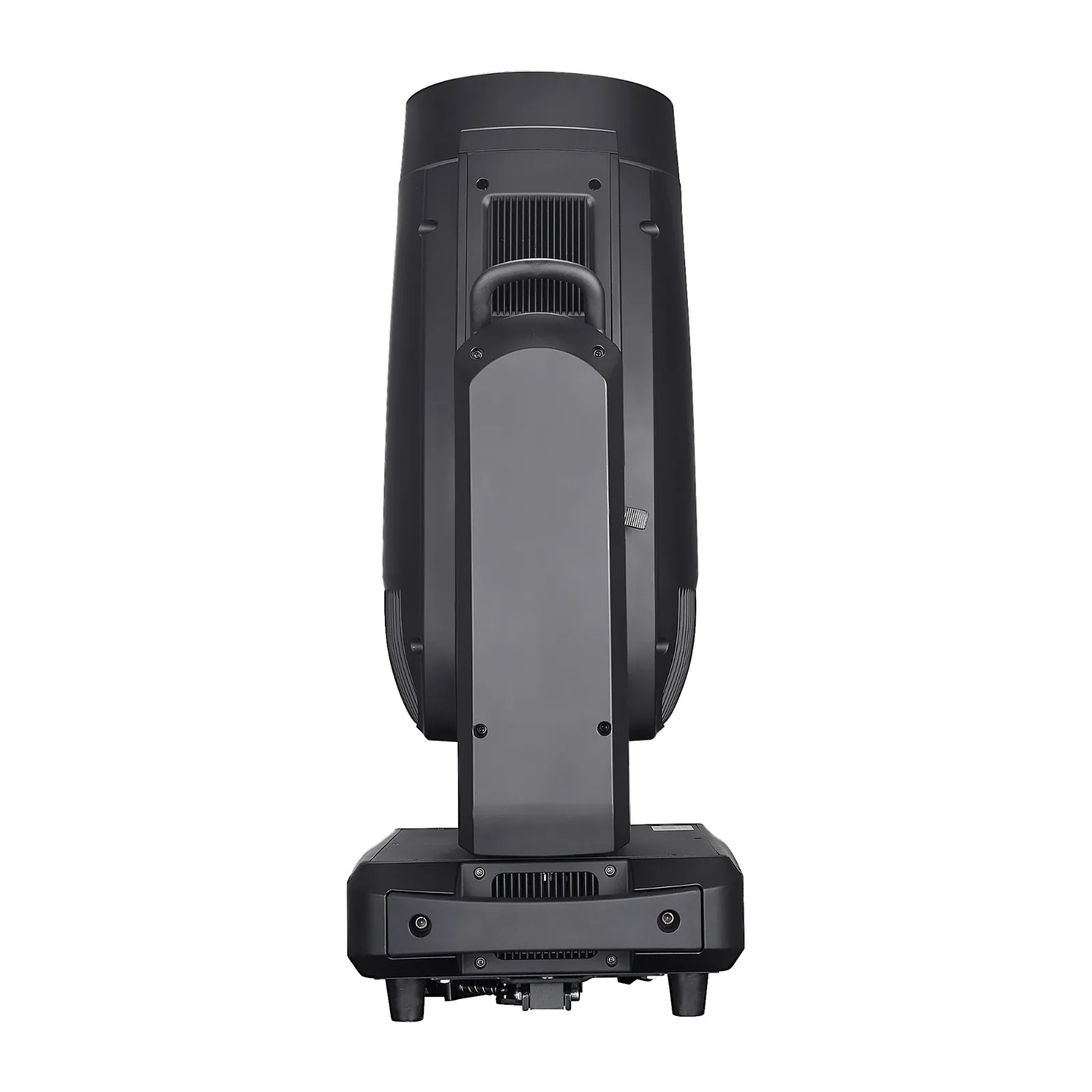

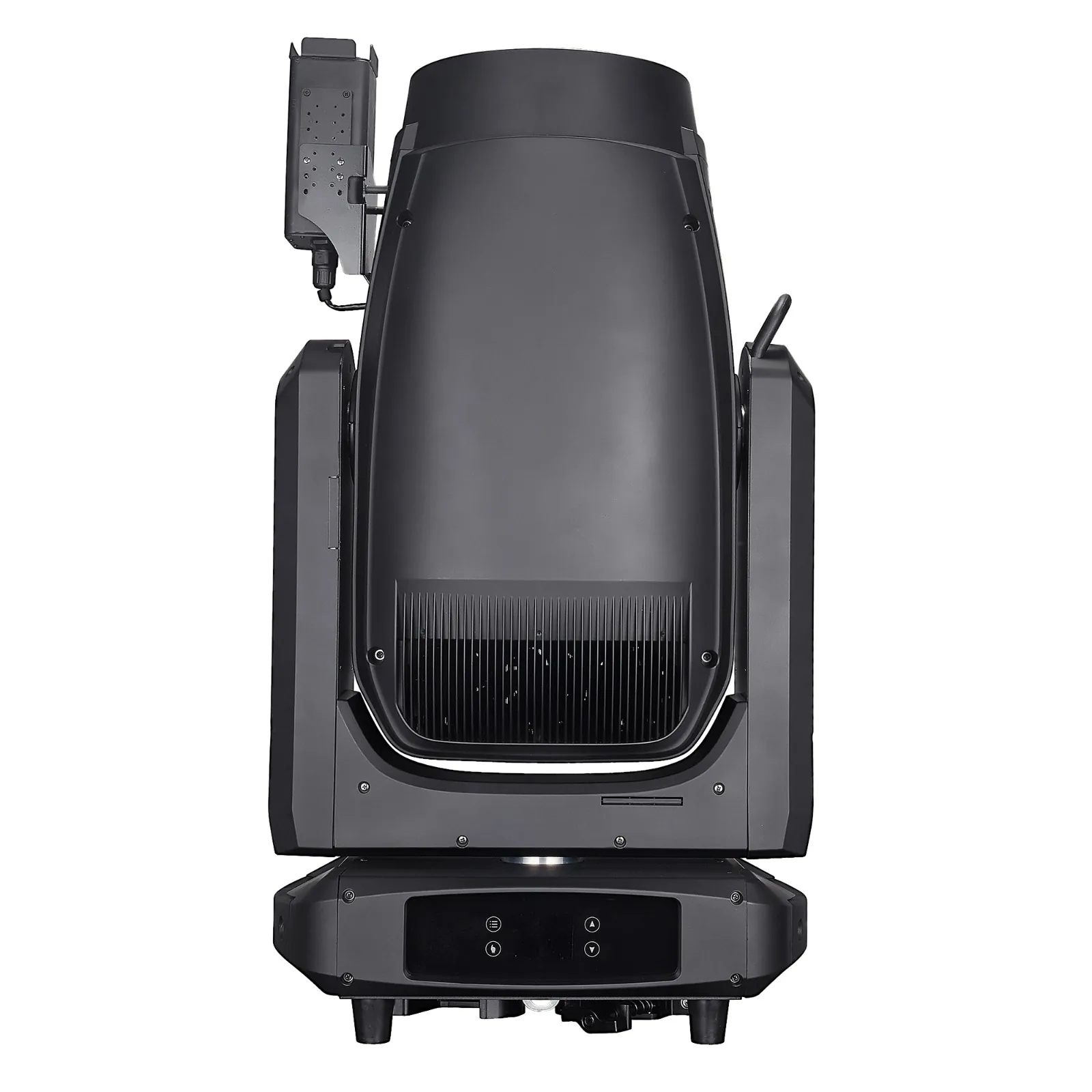

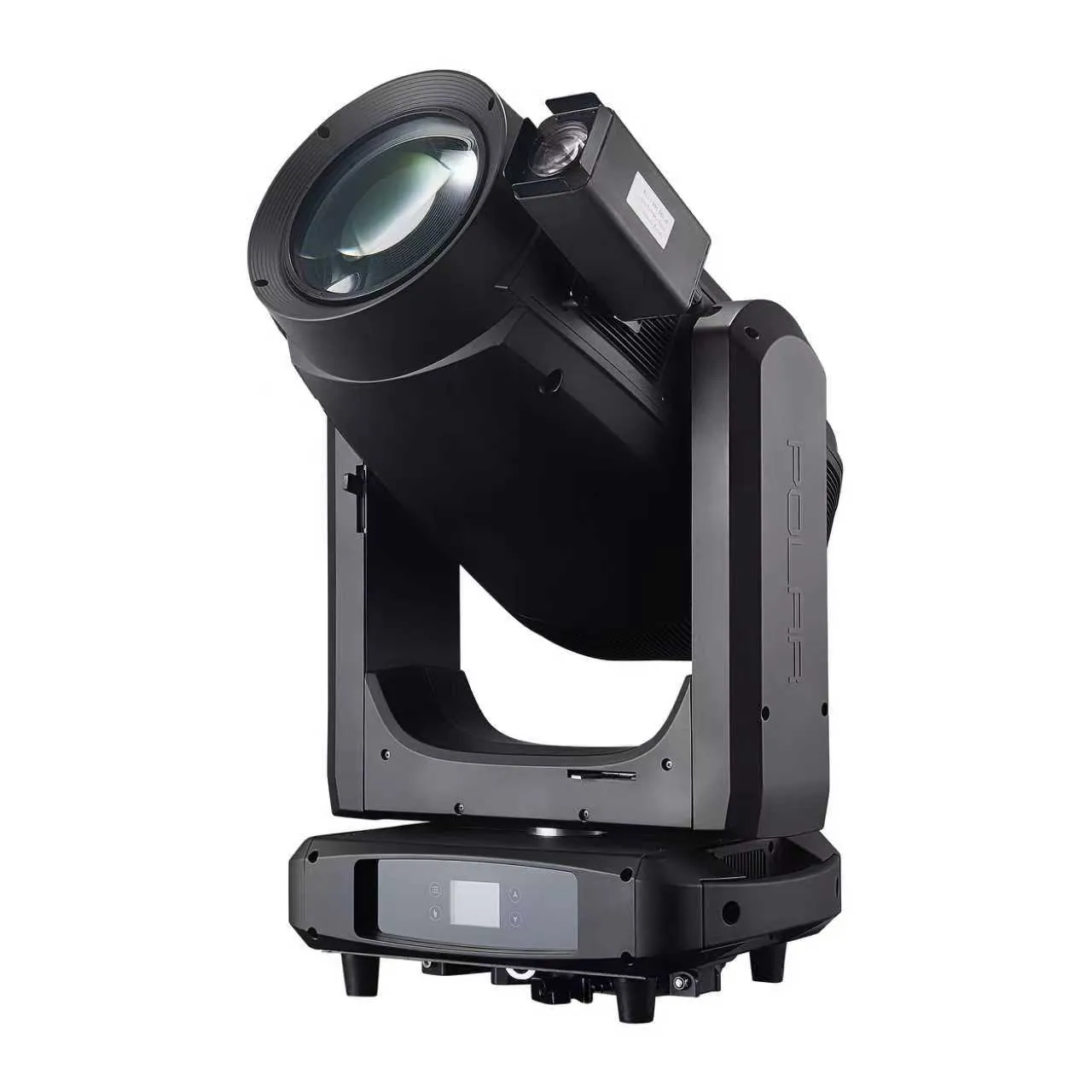

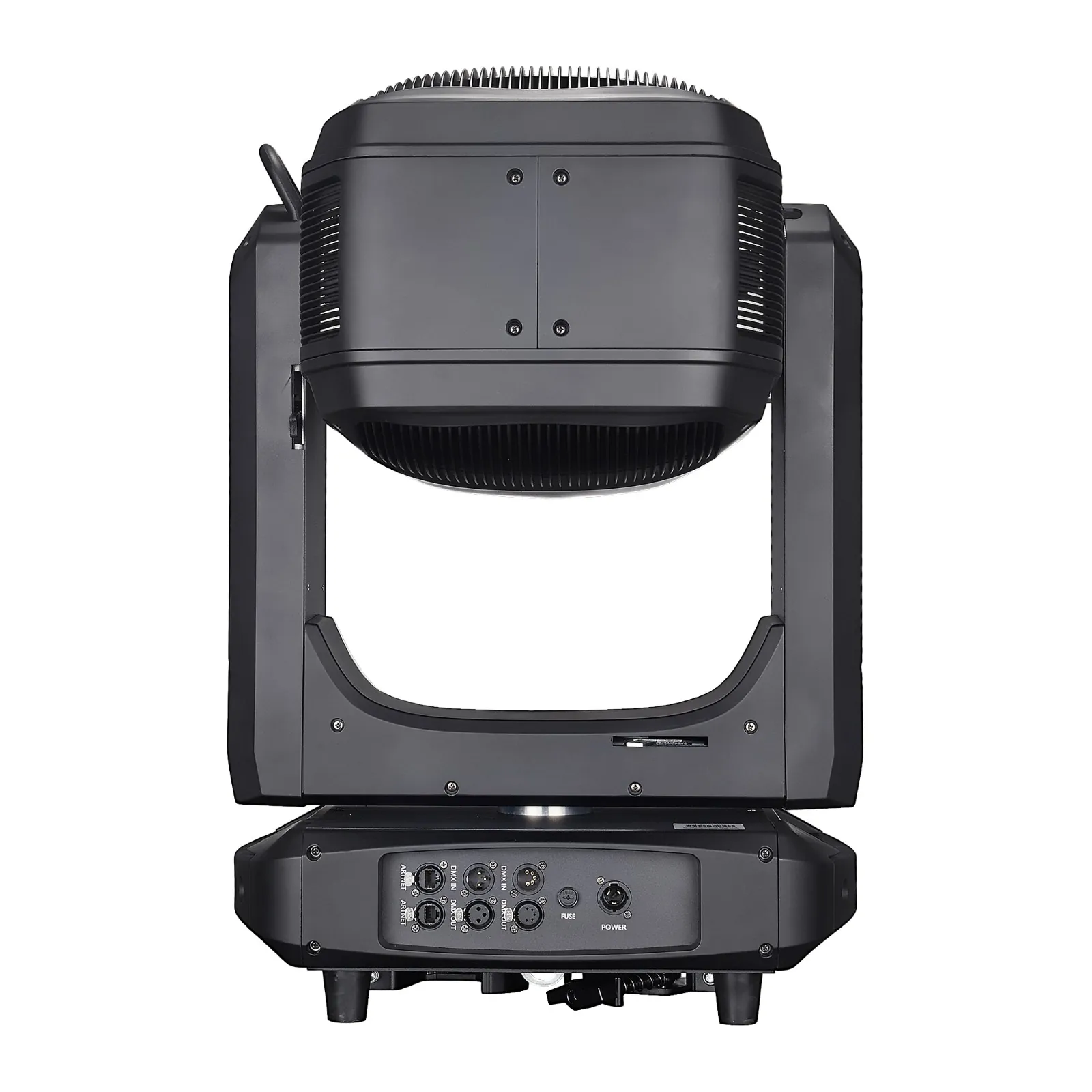

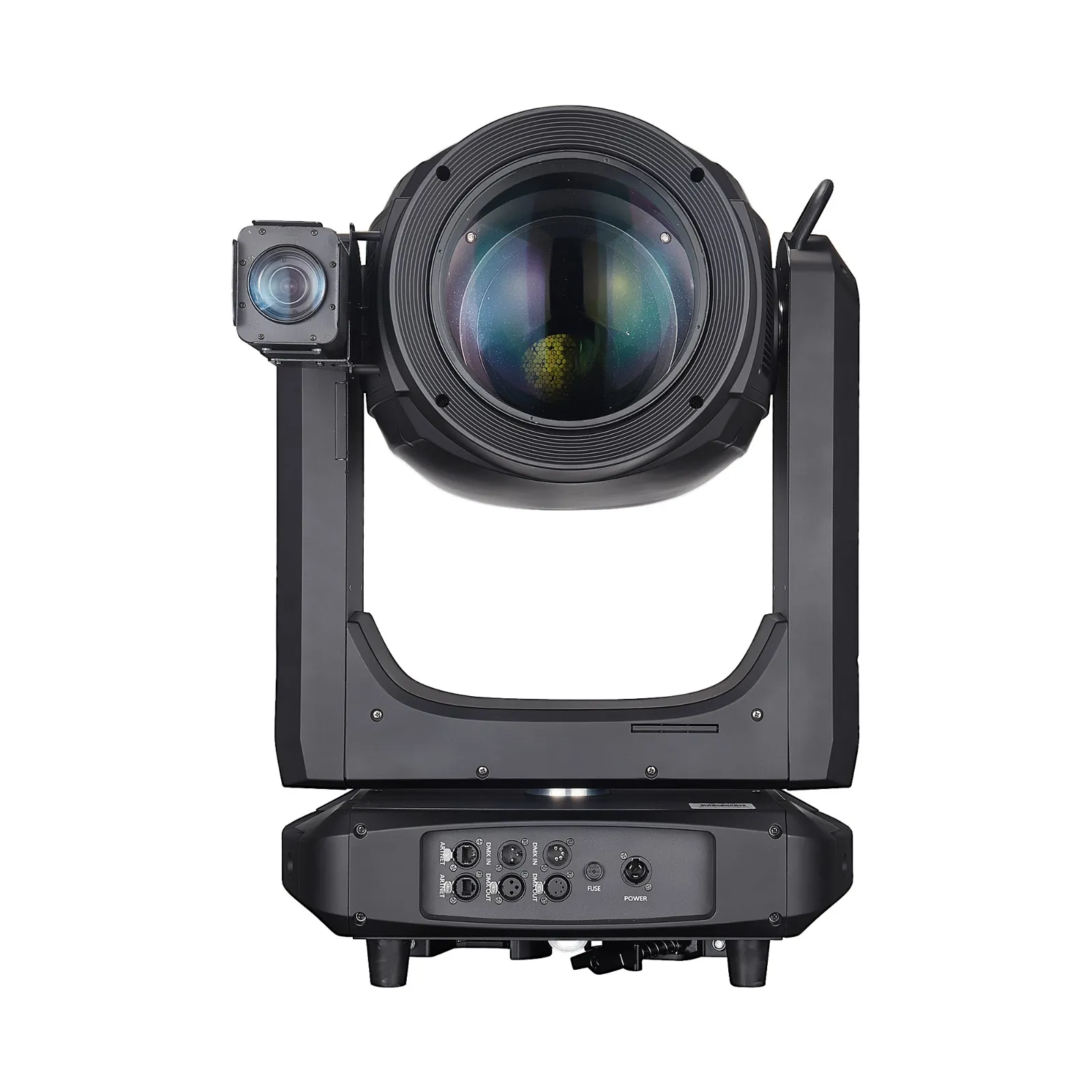

1500W LED BWSF Moving Head with Ground Follow Spot System

FRAMING

Framing: 4 groups and eight directions of blade, full crossover of each blade, the framing system can rotate 90,

and each blade can shape individually and cut off

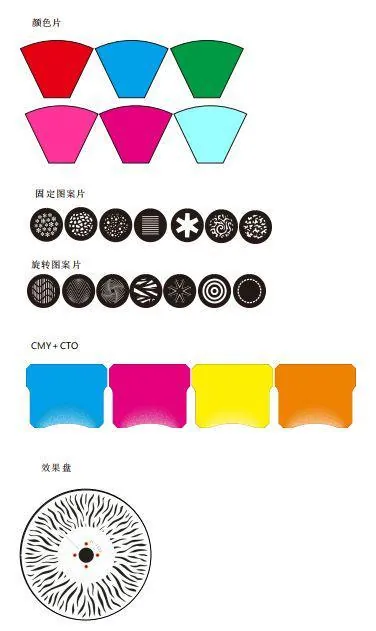

GOBO

Static gobo wheel: 7 static gobos+open

Rotating gobo wheel: 7 interchangeable gobos +open

Animation wheel: dynamic effect like flame or water,etc

COLOR

Color Wheel: 5 colors+open

CTO: Independent CTO,color temperature can be linear adjusted(2800K-7800K)

CMY: Independent CMY,with linear color change,limitless color mixing

DYNAMIC EFFECTS

Pan/tilt: 540°/270°,16-bit control and automatic return correction

Prism: 3 facet prism

Focus: High-precision glass lenses,electronic linear HD focus

Iris: Linear 5-100%,with built-in macros

Dimmer: 0-100% linear electronic dimming

Strobe: 1-25Hz, synchronized, pulse effects

Frost: Independent frost effect

CONTROL/PROGRAMMING

Channel: 39CH

Display: LCD display

Software: Update software by DMX connection

Control mode: DMX512, RDM, Artnet(Optional), Auto-running, Master/salve, Sound active, Built-in program

OTHERS

IP class: IP20

Net weight: 48.8KG

Gross weight: 52.7KG

Packing size: 95.5x60.5x47.5CM

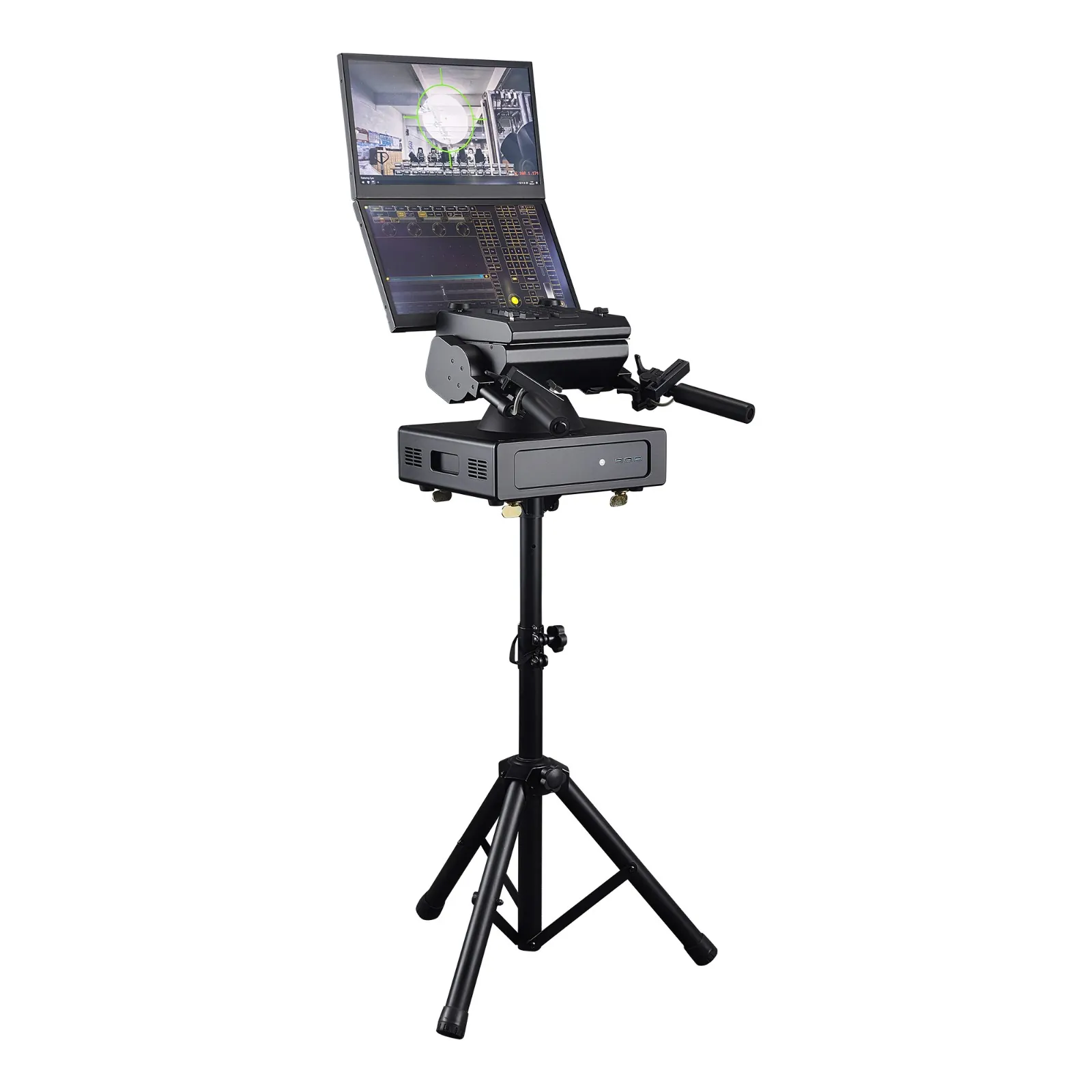

Follow Spot System-ELECTRICAL/OPTICAL

Voltage: AC110-240V 50/60Hz

Light source: MAX 135W

Work temperature: -10°C ~ 60°C, Less than 90%RH

Follow Spot System-DYNAMIC EFFECTS

Pan/tilt movement range value: 90° (-45°to 45°)/60° (-30°to 30°)

Optical interface: LC interface

Optical Fiber wavelength: 1310nm/155onm

Transmission distance: 25km

Optical port speed: 155M

Electric port speed: 100M

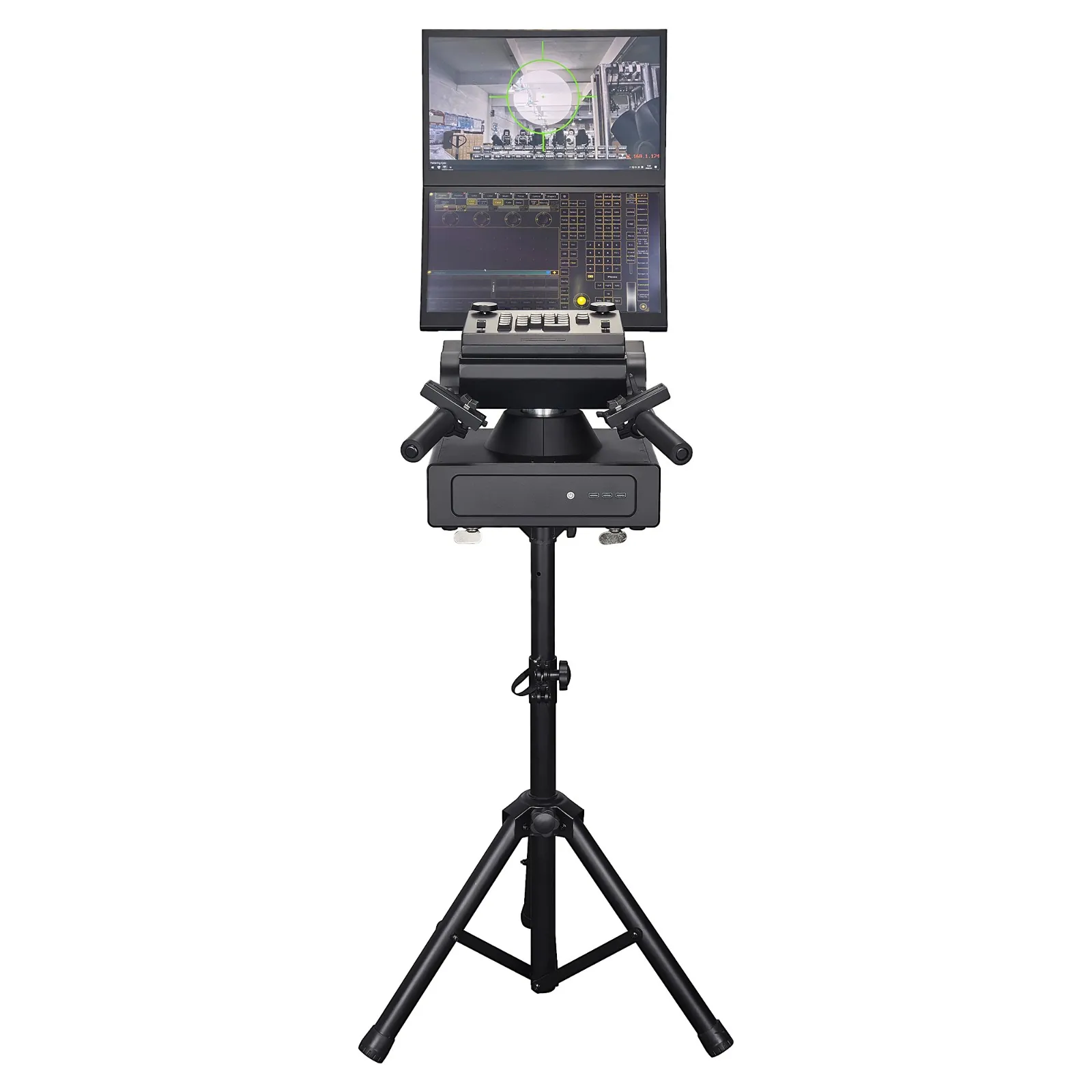

Follow Spot System-CONTROL/PROGRAMMING

Control mode: RJ45X1, 3 USB3.0 interface

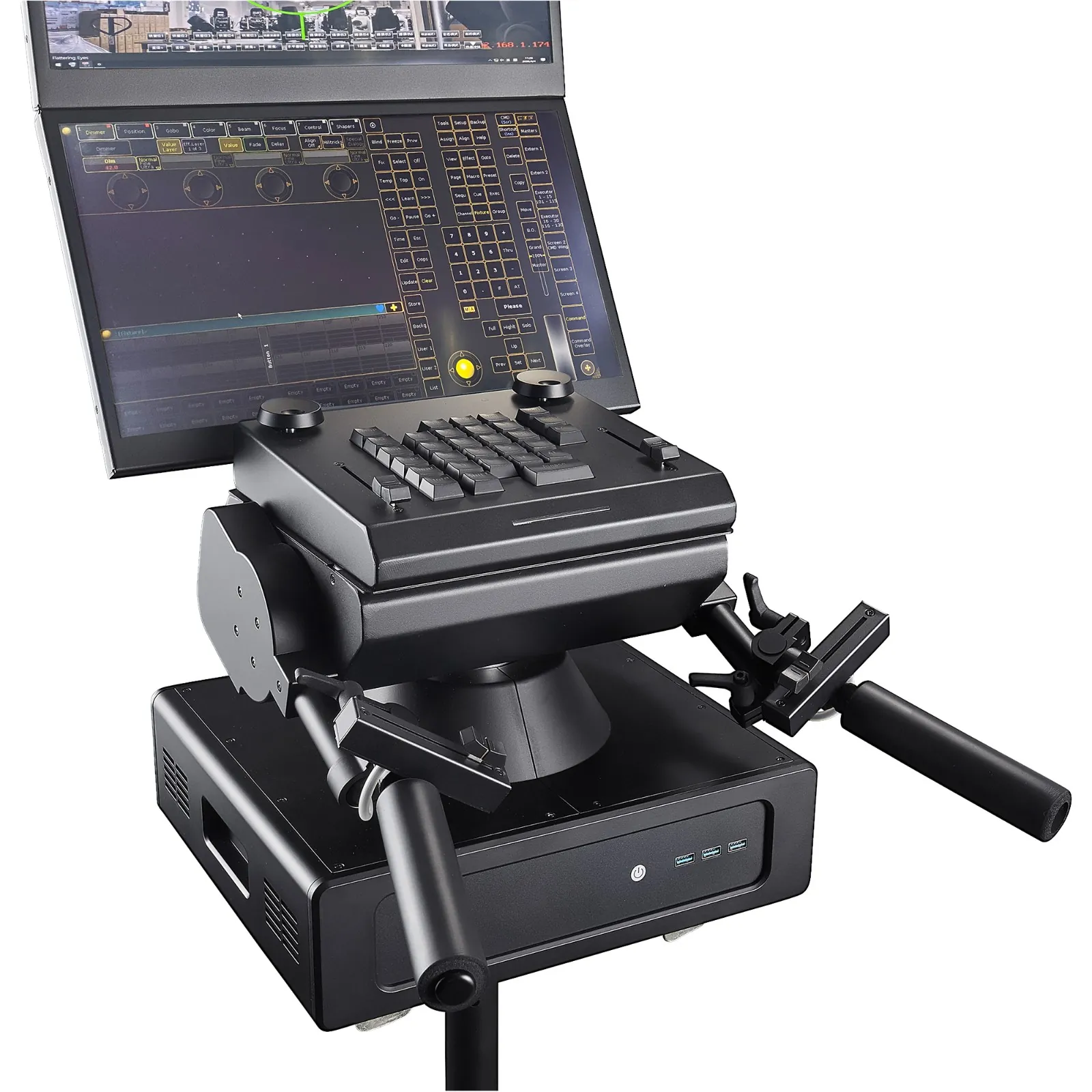

Display: Capacitive touch screen resolution 1920X1080, Color gamut 72, 2pcs of 15.6inch touch screens

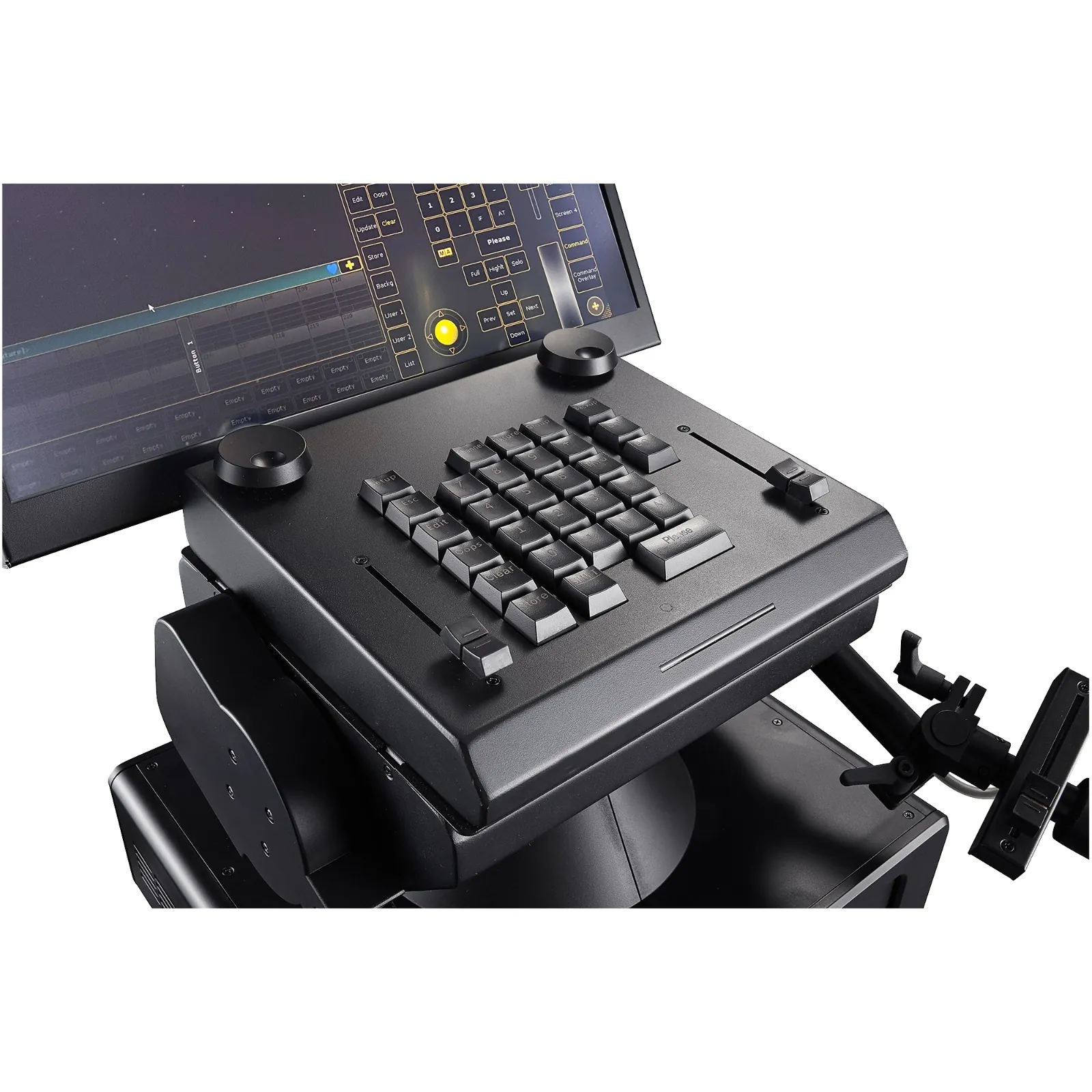

Body：30 physical command buttons (mechanical black switches), 2-way attribute adjustment encoder,

4-way physical storage and playback faders, 60mm manual adjustment, with tripod

Minimum Multicolor LUX: 0.005Lux

Black and white LUX: 0.0005Lux

Signal-to-noise ratio: More than 52dB
