LED 600W BWSF Moving Head

ELECTRICAL/OPTICAL

Voltage：AC100-240V 50/60Hz

Light source：600W/400W LED

Rated lifetime：≥20000Hours

CRI：High CRI Mode Ra≥90, Ra≥75(Optional),

Zooming angle: 5°-45°

FRAMING

Framing：4 groups and eight directions of blade, full crossover of each blade,

                  the framing system can rotate 90° and each blade can shape individually and cut off

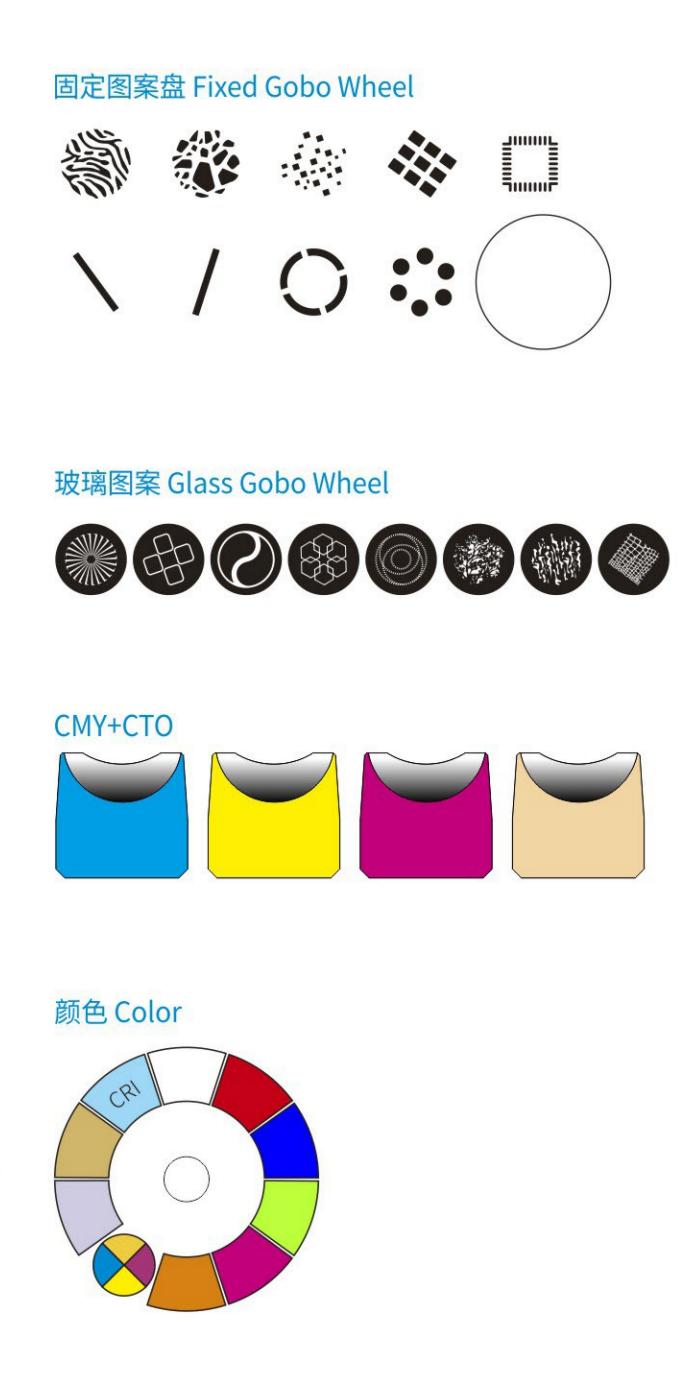

GOBO

Static gobo wheel: 9 static gobos + open

Rotating gobo wheel: 8 interchangeable gobos + open

COLOR

Color Wheel：8 colors+open

CTO： Color temperature can be linear adjusted （2800K-7800K）

CMY： Plug-in type CMY, with linear color change,limitless color mixing

DYNAMIC EFFECTS

Pan/tilt: 540°/270°, 16-bit control and automatic return correction

Prism：5 facet prism

Focus: High-precision glass lenses, electronic linear HD focus

Iris: Linear 5-100%, with built-in macros

Dimmer: 0-100% linear electronic dimming

Strobe: 1-25Hz, synchronized, pulse effects

Frost：Two independent frost, light frost and deep frost

CONTROL/PROGRAMMING

Channel：44CH/45CH

Display：LCD display

Software： Update software by DMX connection

Control mode: DMX 512,RDM,Artnet(Optional),Auto-running ,Master/slave, Sound active, Built-in program

OTHERS

IP class: IP20

Net weight: 23.5KG

Gross weight: 25.7KG

Packing size: 79*44*36.5CM
