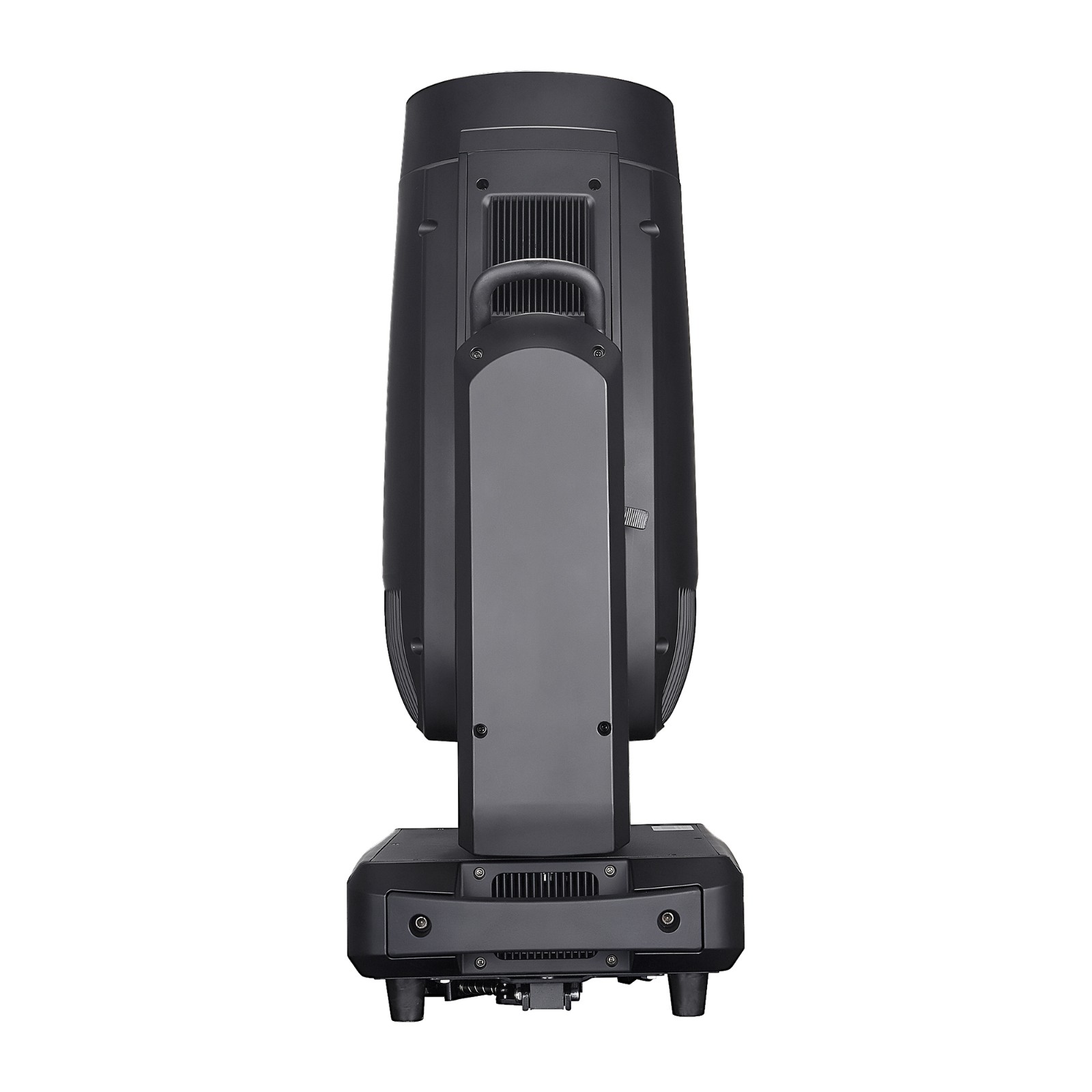

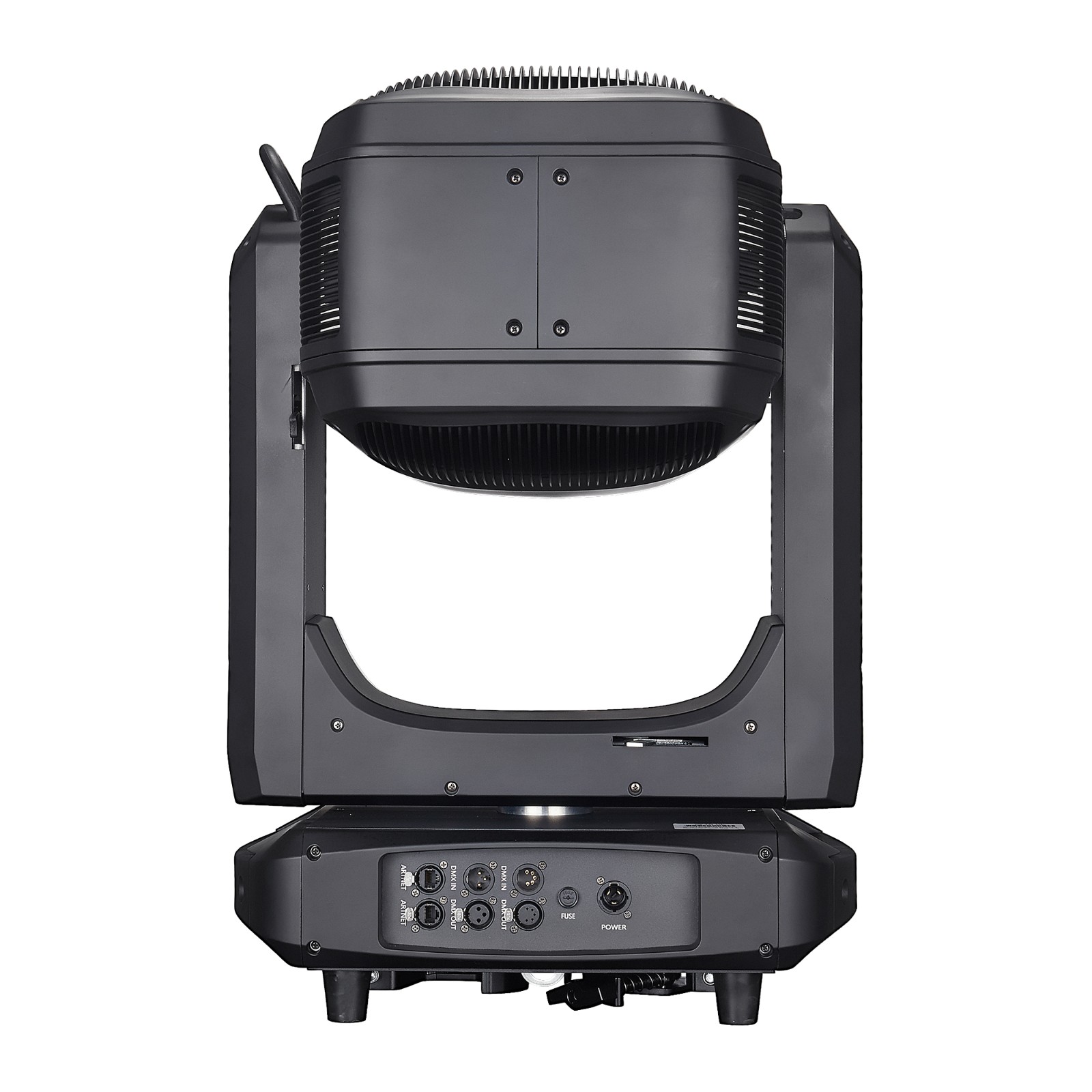

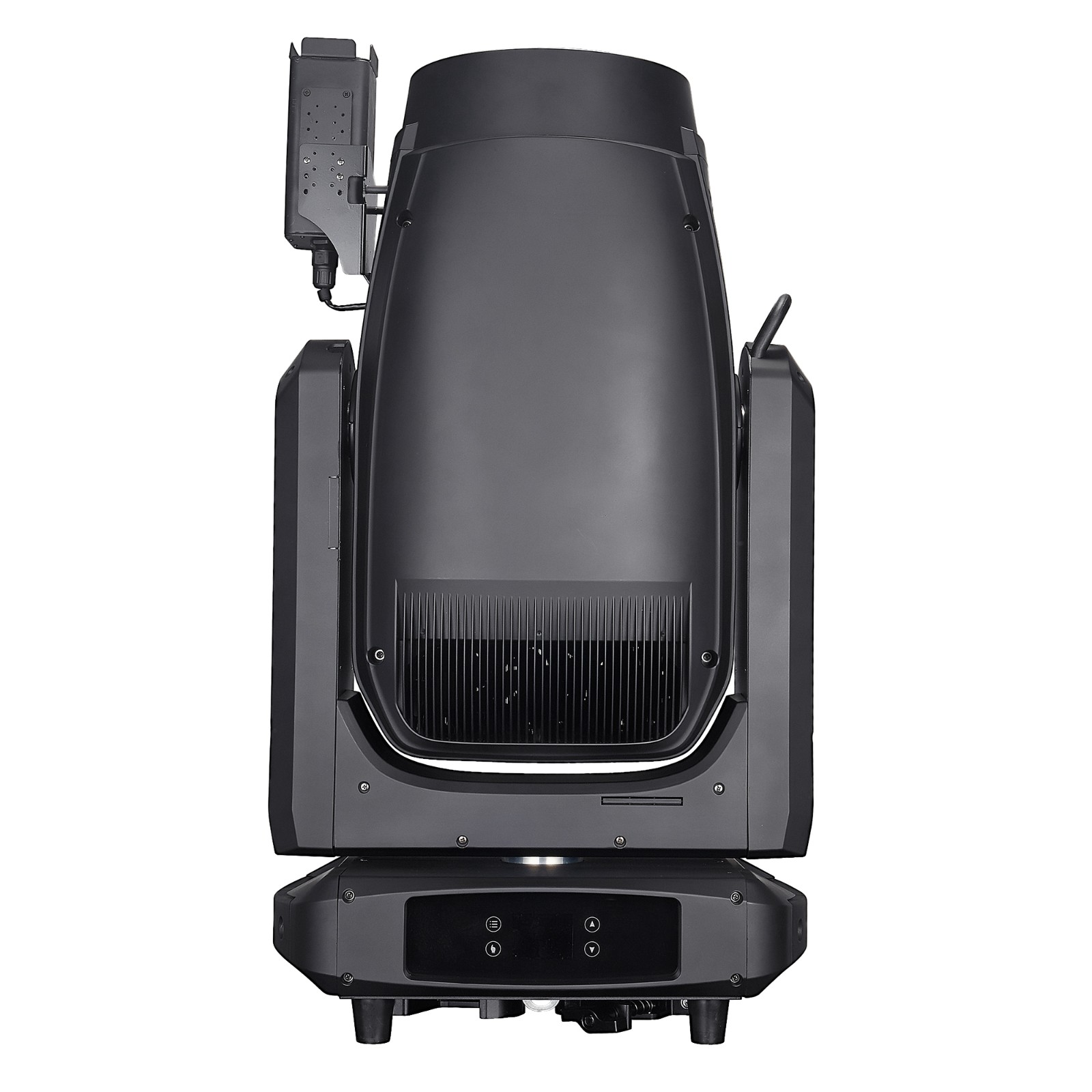

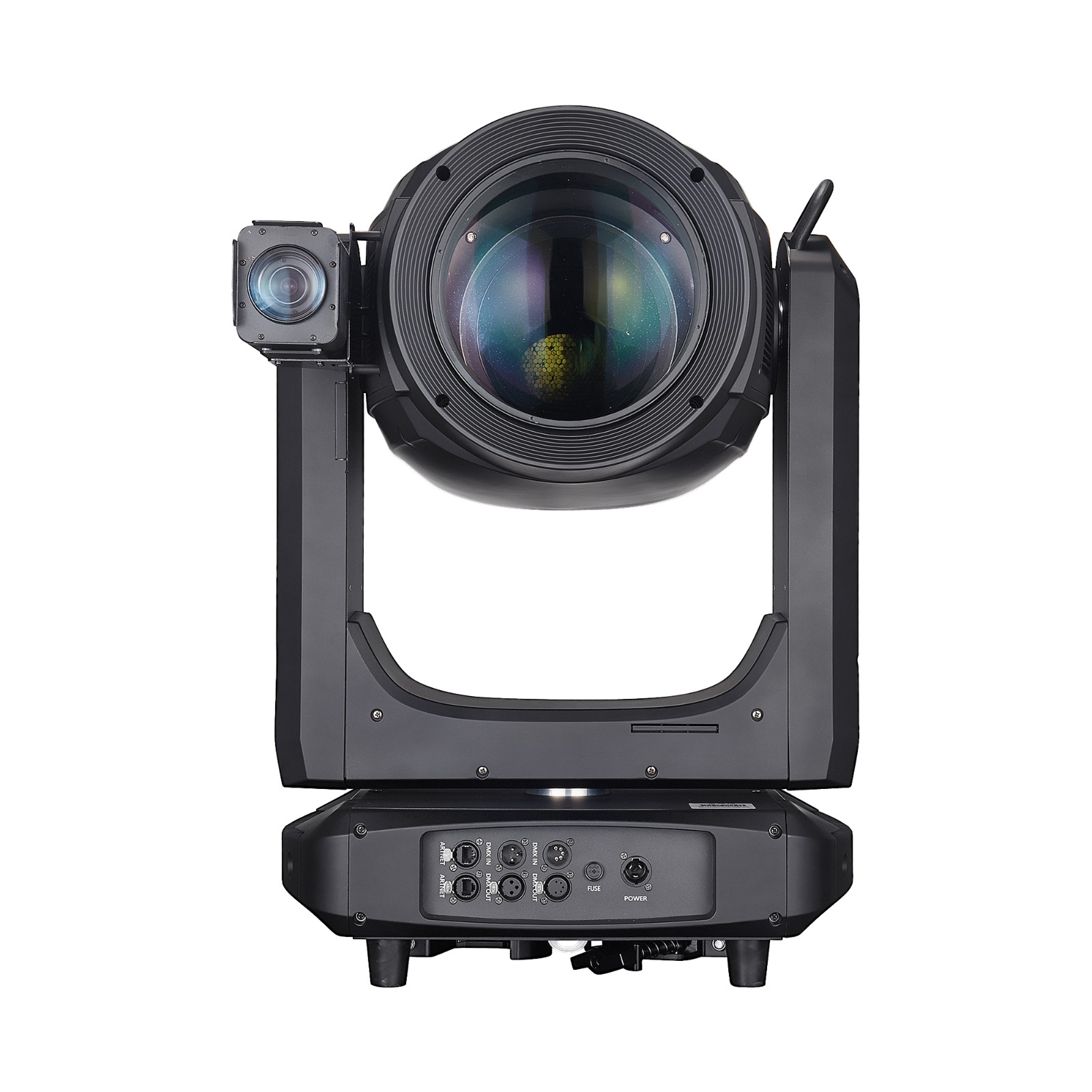

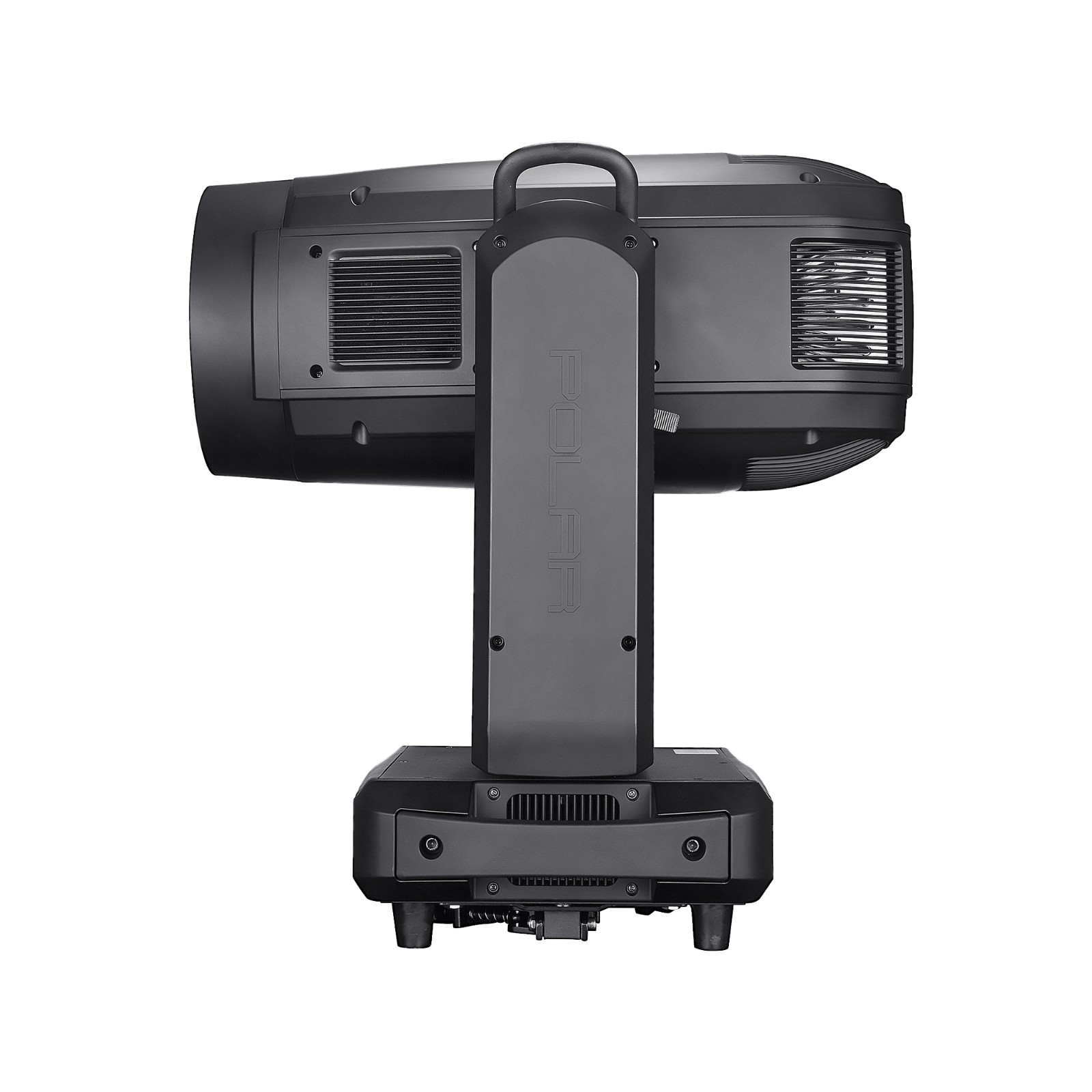

1500W LED BWSF Moving Head with Ground Follow Spot System

ELECTRICAL/OPTICAL

Voltage：AC100-240V 50/60Hz

Light source：1500W LED

Rated lifetime：≥20000Hours

CRI：High CRI Mode Ra≥90, Ra≥75(Optional),In addition, you can choose a high CRI source with Ra≥95

Zooming angle: 5°-50°

FRAMING

Framing：4 groups and eight directions of blade, full crossover of each blade, the framing system can rotate 90° and each blade can shape individually and cut off

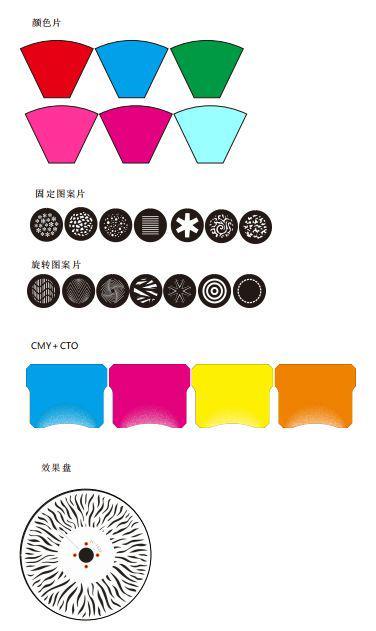

GOBO

Static gobo wheel: 7 static gobos + open

Rotating gobo wheel: 7 interchangeable gobos + open                              Animation wheel: dynamic effect like flame or water, etc

COLOR

Color Wheel: 5 colors+open

CTO： Independent CTO，color temperature can be linear adjusted （2800K-7800K）

CMY：Plug in type CMY, with linear color change,limitless color mixing

DYNAMIC EFFECTS

Pan/tilt: 540°/270°, 16-bit control and automatic return correction

Prism：3 facet prism

Focus: High-precision glass lenses, electronic linear HD focus

Iris: Linear 5-100%, with built-in macros

Dimmer: 0-100% linear electronic dimming

Strobe: 1-25Hz, synchronized, pulse effects

Frost：Light frost and deep frost effect

CONTROL/PROGRAMMING

Channel：39CH

Display：LCD display

Software： Update software by DMX connection

Control mode: DMX 512,RDM,Artnet(Optional),Auto-running ,Master/slave, Sound active, Built-in program

OTHERS

IP class: IP20

Net weight：48.8KG

Gross weight：52.7KG

Packing size ：95.5×60.5×47.5cm

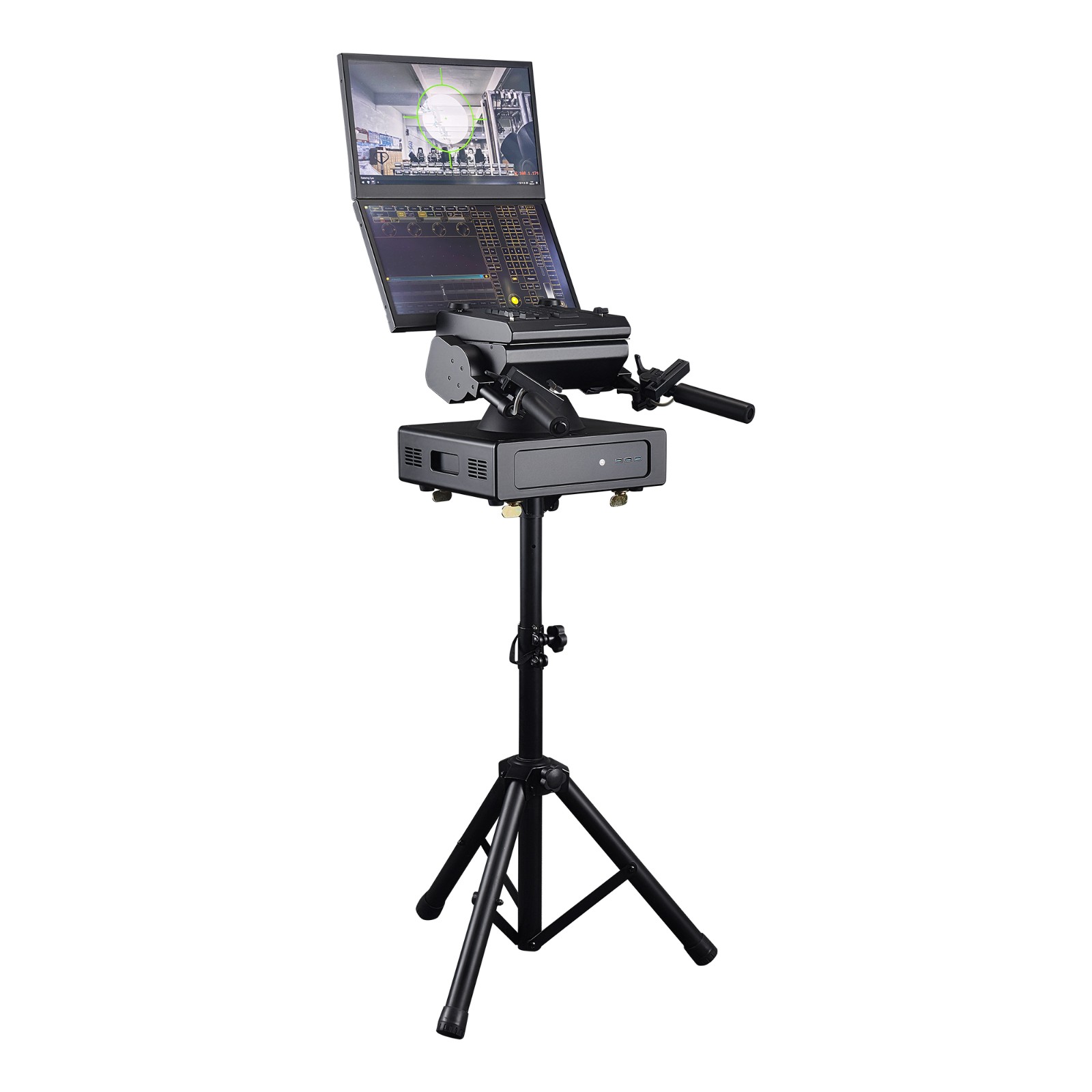

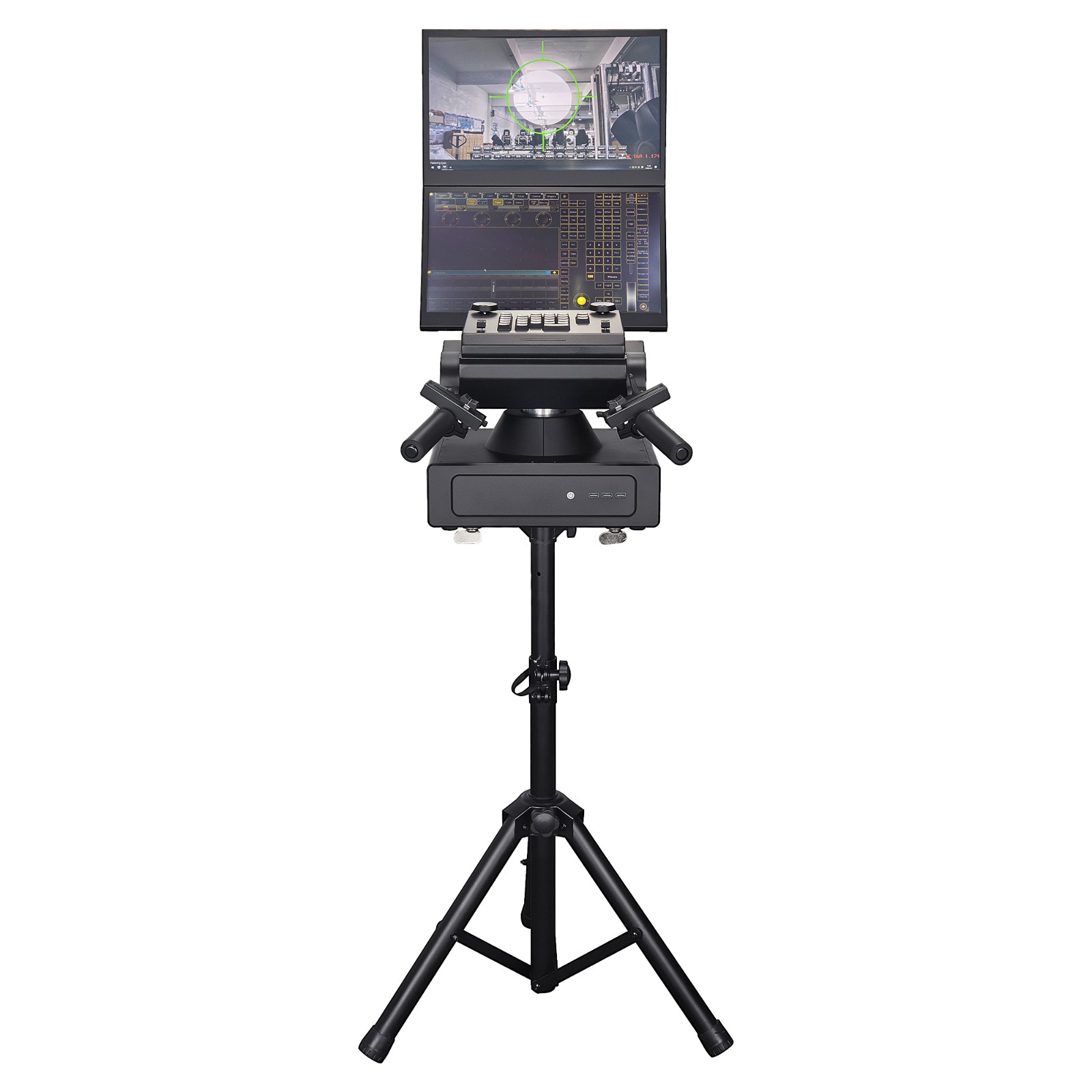

Follow Spot System-ELECTRICAL/OPTICAL

Voltage:AC110-240V 50/60Hz

Light source：MAX 135W

Working temperature：-10℃-60℃，less than 90%RH

Follow Spot System-DYNAMIC EFFECTS

Pan/it movement range value: 90 (-45℃to 45℃)/60° (-30°to 30°)Optical interface: LC interface

Optical Fiber wave length: 1310nm/1550nm

Transmission distance：25KM

Optical port speed ：155M

Electric port speed ：100M

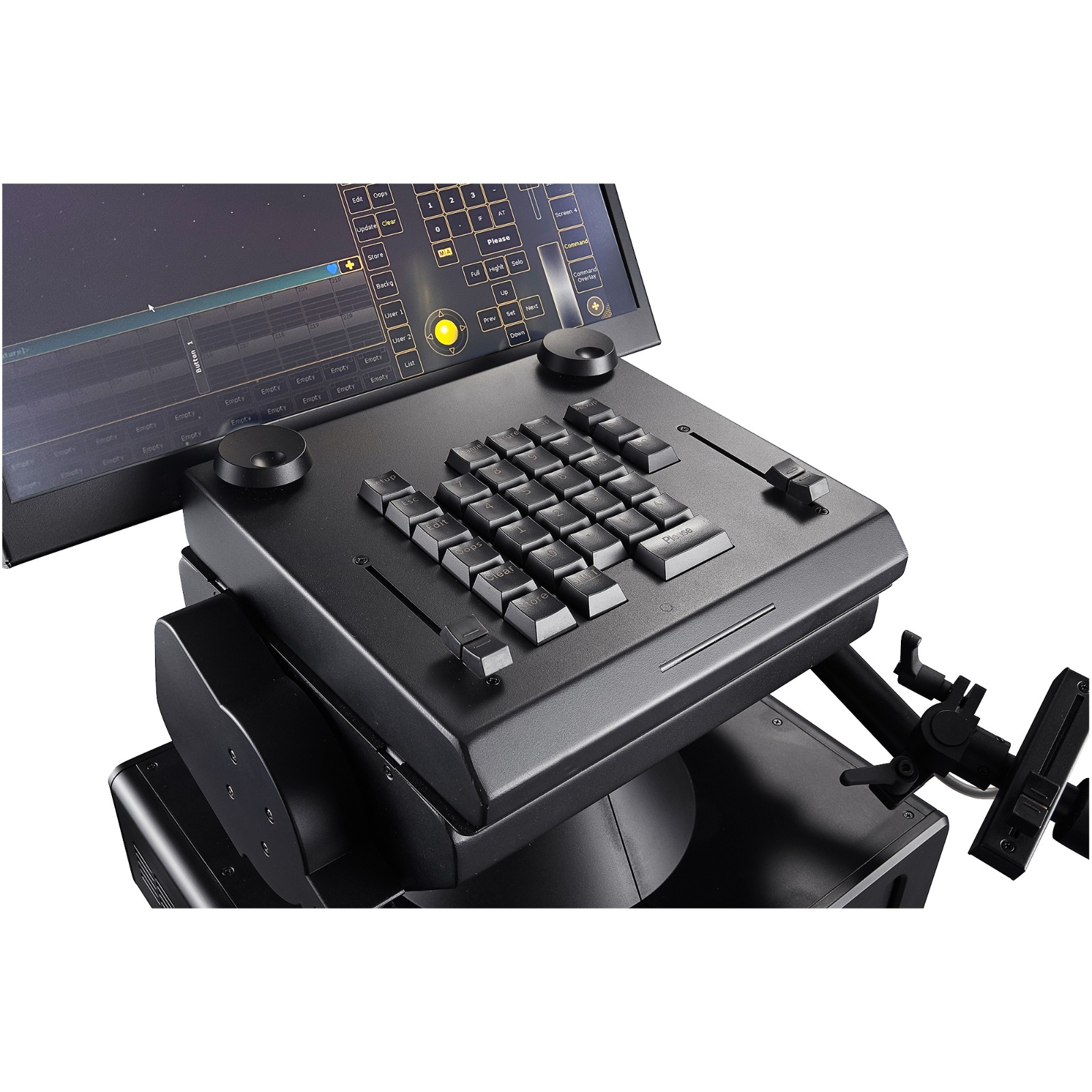

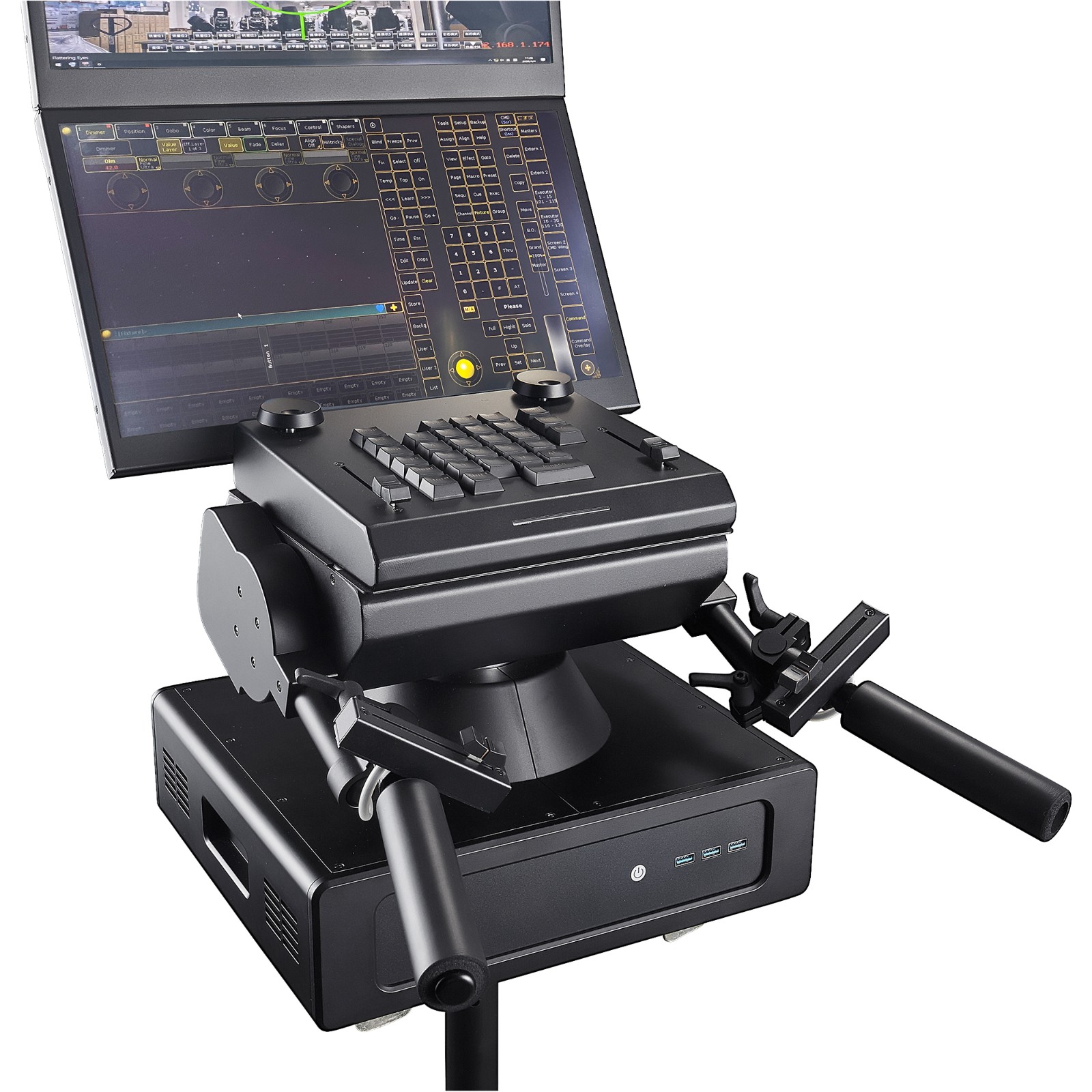

Follow Spot System -CONTROL/PROGRAMMING

Control Mode：RJ45X1,3USB3.0 interface

Display：Capacitive touch screen resolution 1920×1080，Color gamut 72，2pcs of 15.6 inch touch screens

Body：30 physical storage and playback faders ，60mm manual adjustment，with tripod

Minimum Multicolor LUX：0.005Lux

Black and white Lux：0.0005Lux

Signal-to-noise ratio：More than 52 DB

Follow Spot System-OTHERS

IP class: IP20

Net weight: 15KG

Maxunfolding diameter ：850MM，Max deployment height: 900mm

Max support weight：40 kg

Product size： :37X65X67CM

Package size 1 in 1 flight case ：106×59×62CM
