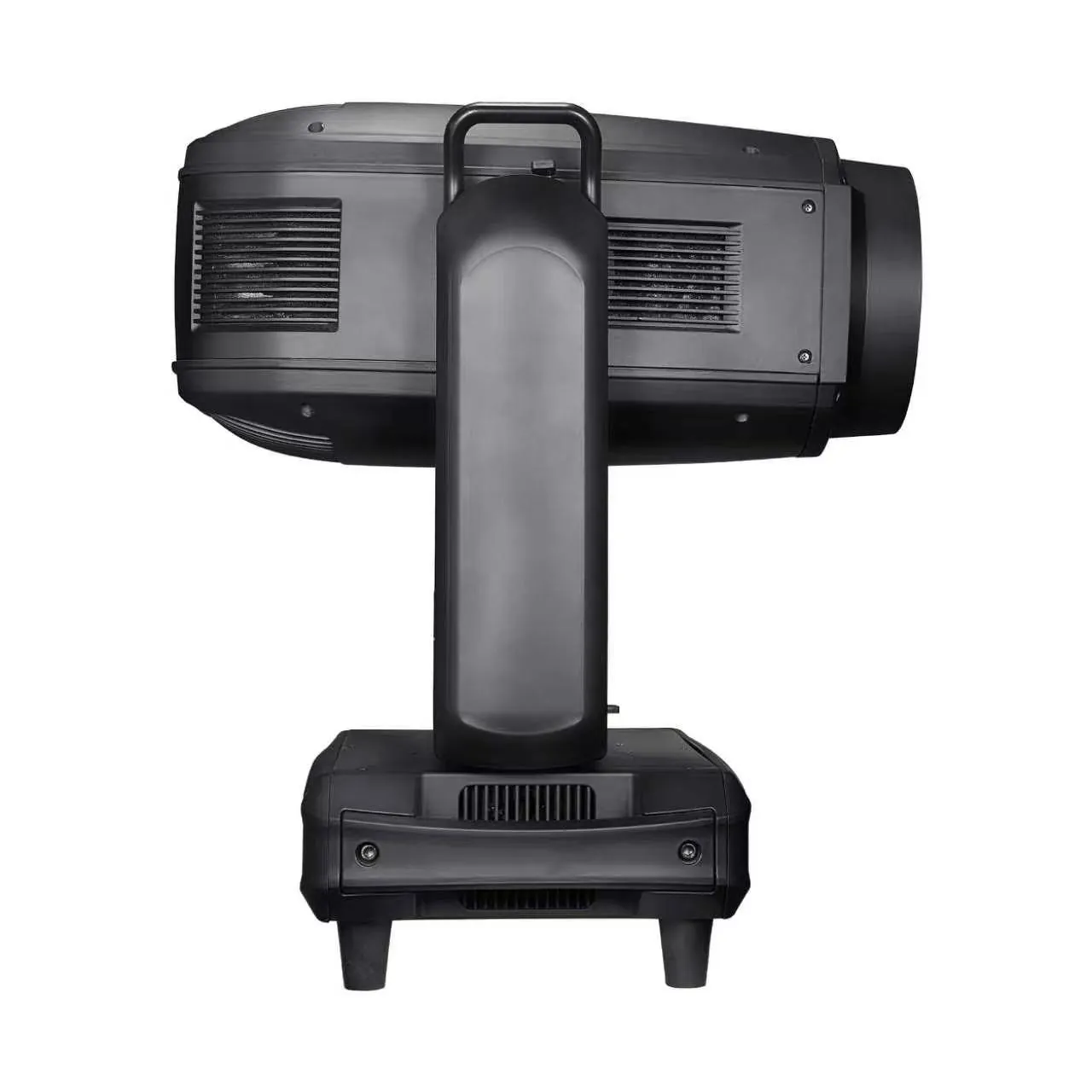

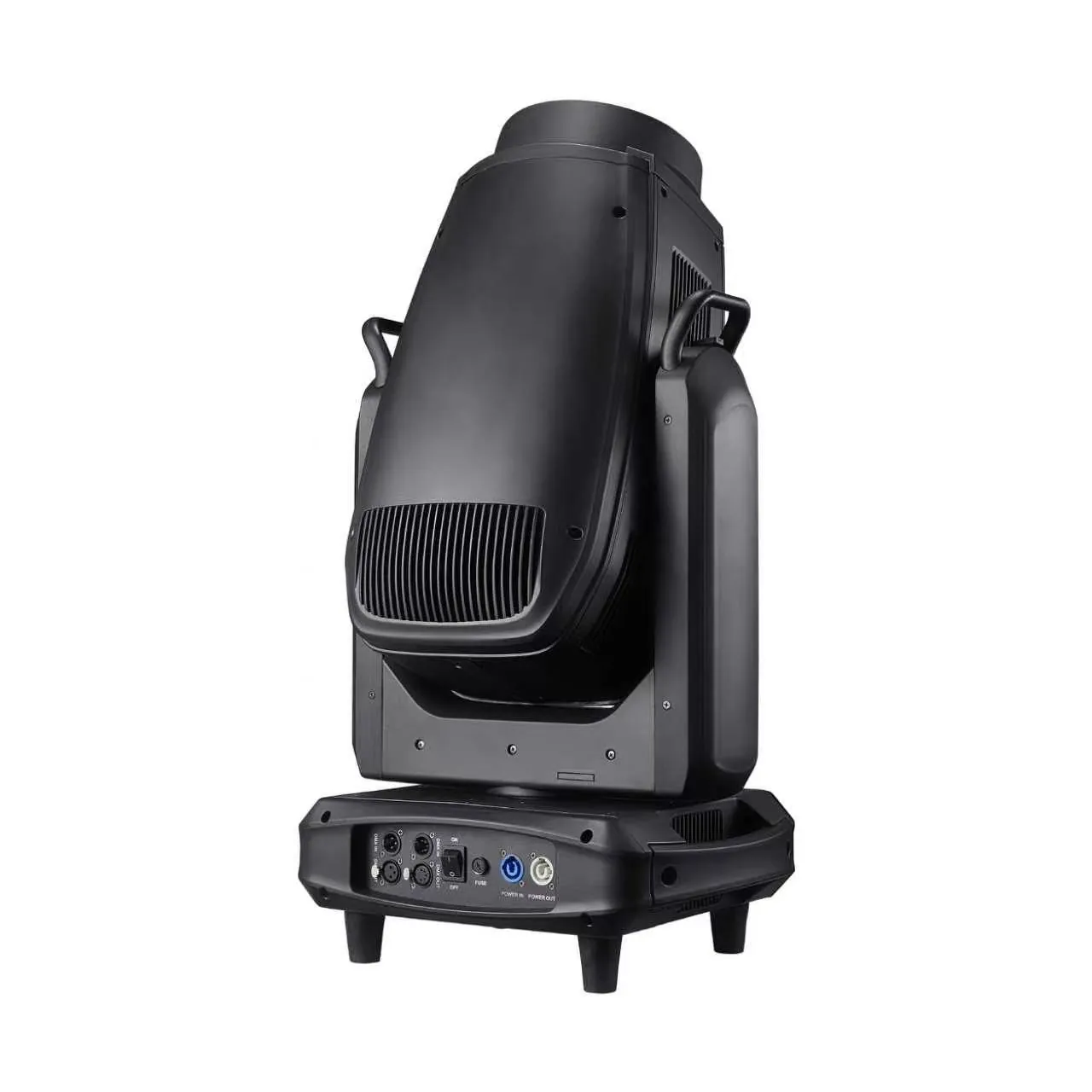

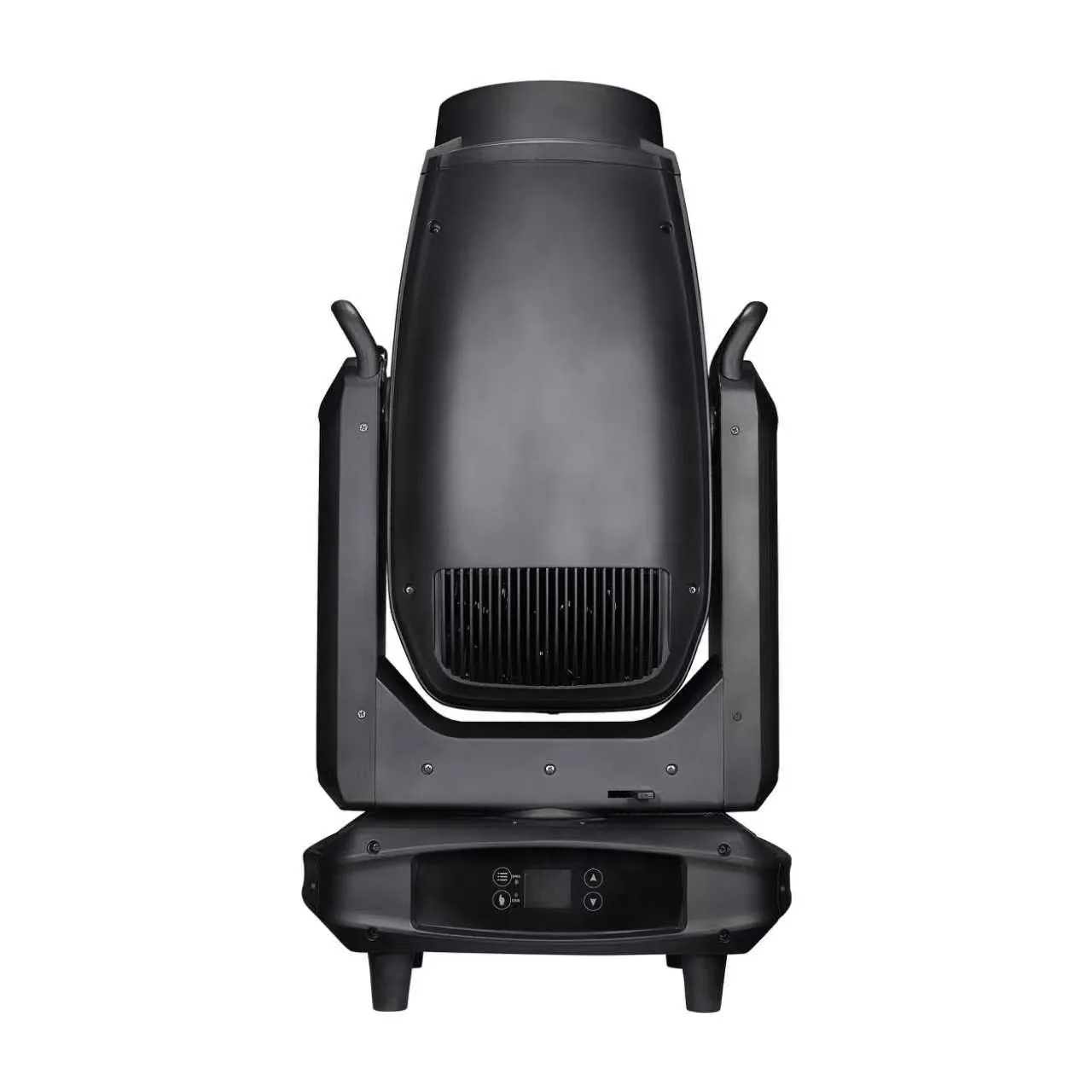

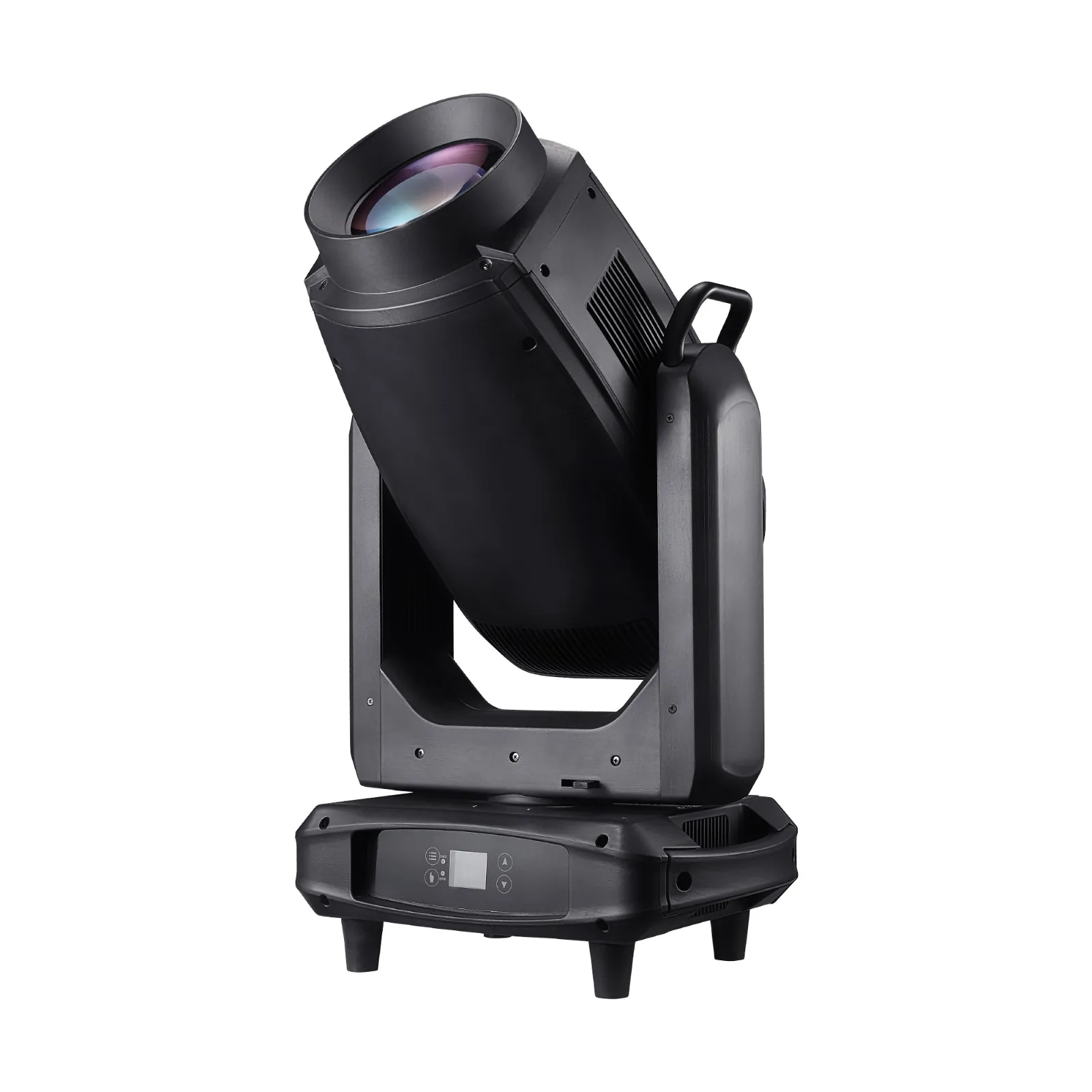

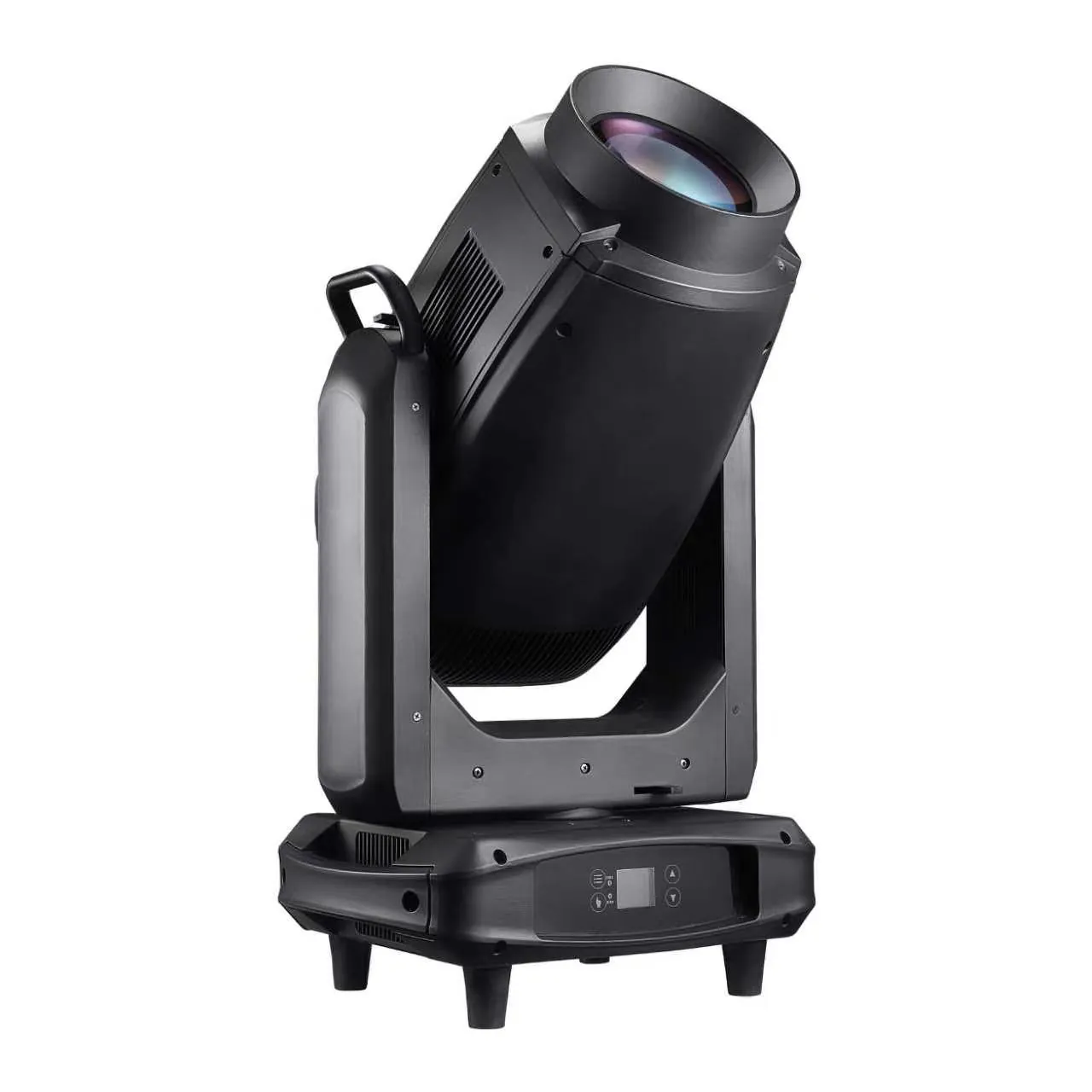

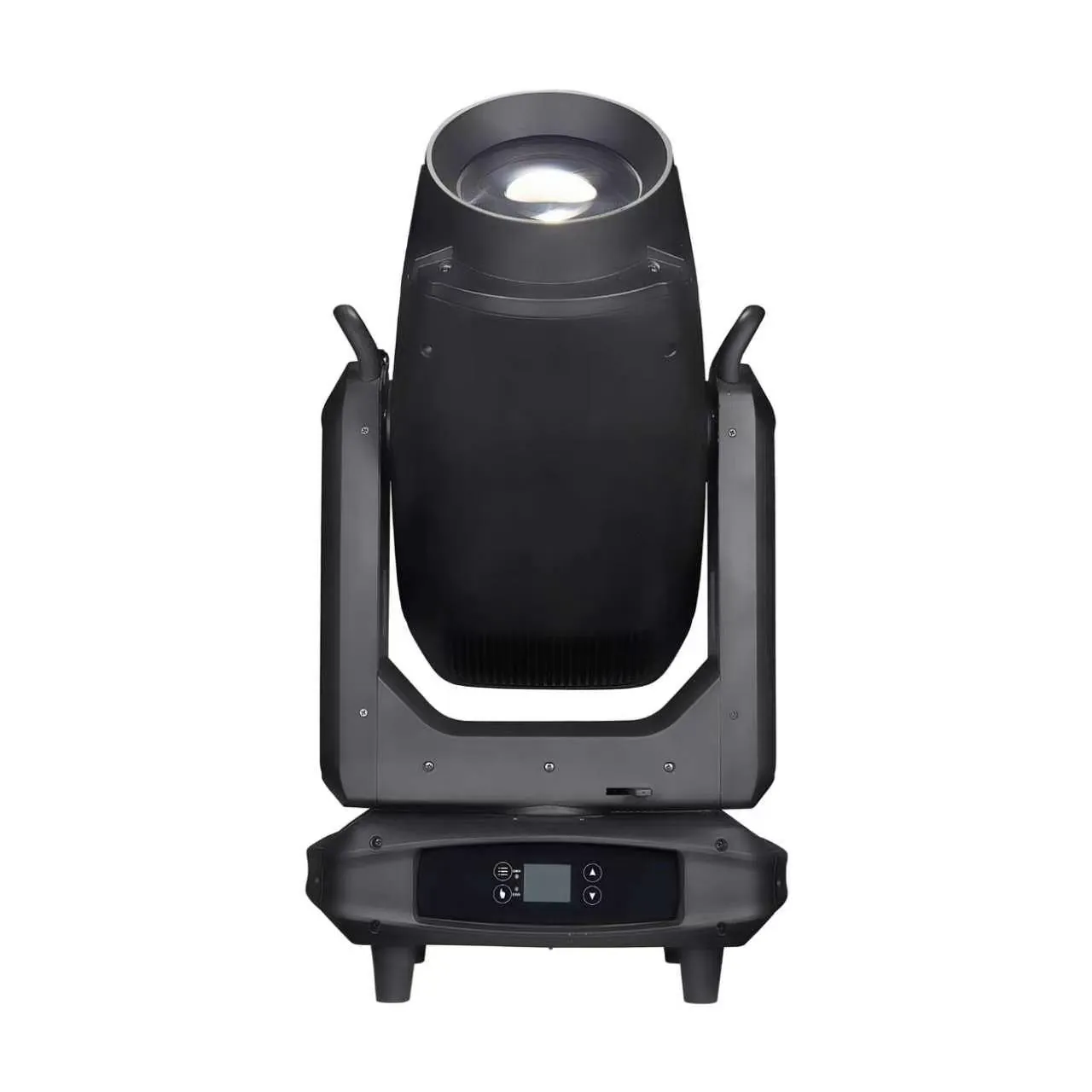

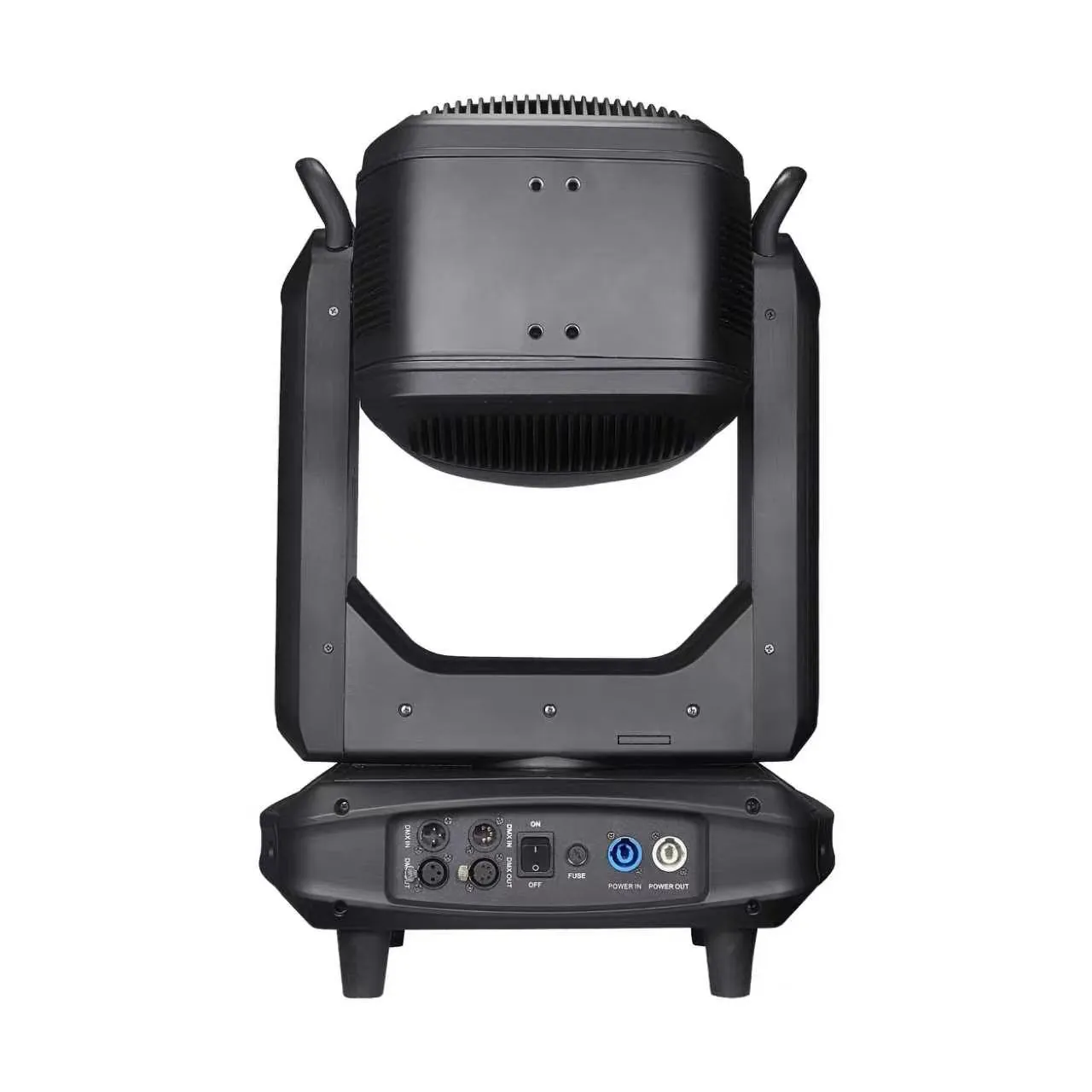

1200W LED BSWF Moving Head

ELECTRICAL/OPTICAL

Voltage：AC100-240V 50/60Hz

Light source：1200W LED

Rated lifetime：≥20000Hours

CRI：High CRI Mode Ra≥90,Ra≥70(Optional),In addition, you can choose a high CRI source with Ra≥95

Zooming angle: 5°-50°

FRAMING

Framing：4 groups and 8 directions of blade, full crossover of each blade, the framing system can rotate 90° and each blade can shape individually and cut off

GOBO

Static gobo wheel: 7 static gobos + open

Rotating gobo wheel: 7 interchangeable gobos + open

Animation wheel: dynamic effect like flame or water, etc

COLOR

Color Wheel：7 colors+open

CTO： Independent CTO,color temperature can be linear adjusted （2800K-7800K)

CMY：Plug-in type CMY, with linear color change,limitless color mixing

DYNAMIC EFFECTS

Pan/tilt: 540°/270°, 16-bit control and automatic return correction

Prism：3 facet prism, 3 linear prism

Focus: High-precision glass lenses, electronic linear HD focus

Iris: Linear 5-100%, with built-in macros

Dimmer: 0-100% linear electronic dimming

Strobe: 1-25Hz, synchronized, pulse effects

Frost：Independent frost effect

CONTROL /PROGRAMMING

Channel：36/46CH

Display：LCD display

Software： Update software by DMX connection

Control mode: DMX 512,RDM,Artnet(Optional),Auto-running ,Master/slave, Sound active, Built-in program

OTHERS

IP class: IP20

Net weight：45.4KG

Product weight：51.9KG

Packing size：91.5x56.5x46CM
