LED 600W RGBAL BSWF Moving Head

ELECTRICAL/OPTICAL

Voltage:100-240V  50/60 Hz

Light source: 600W RGBAL LED, 8000K

Rated lifetime: ≥20000 Hours

Zoom angle: 4°- 44°

FRAMING

Framing:4 groups and eight directions of blade, full crossover of each blade, the framing system can rotate 90° and each blade can shape individually and cut off

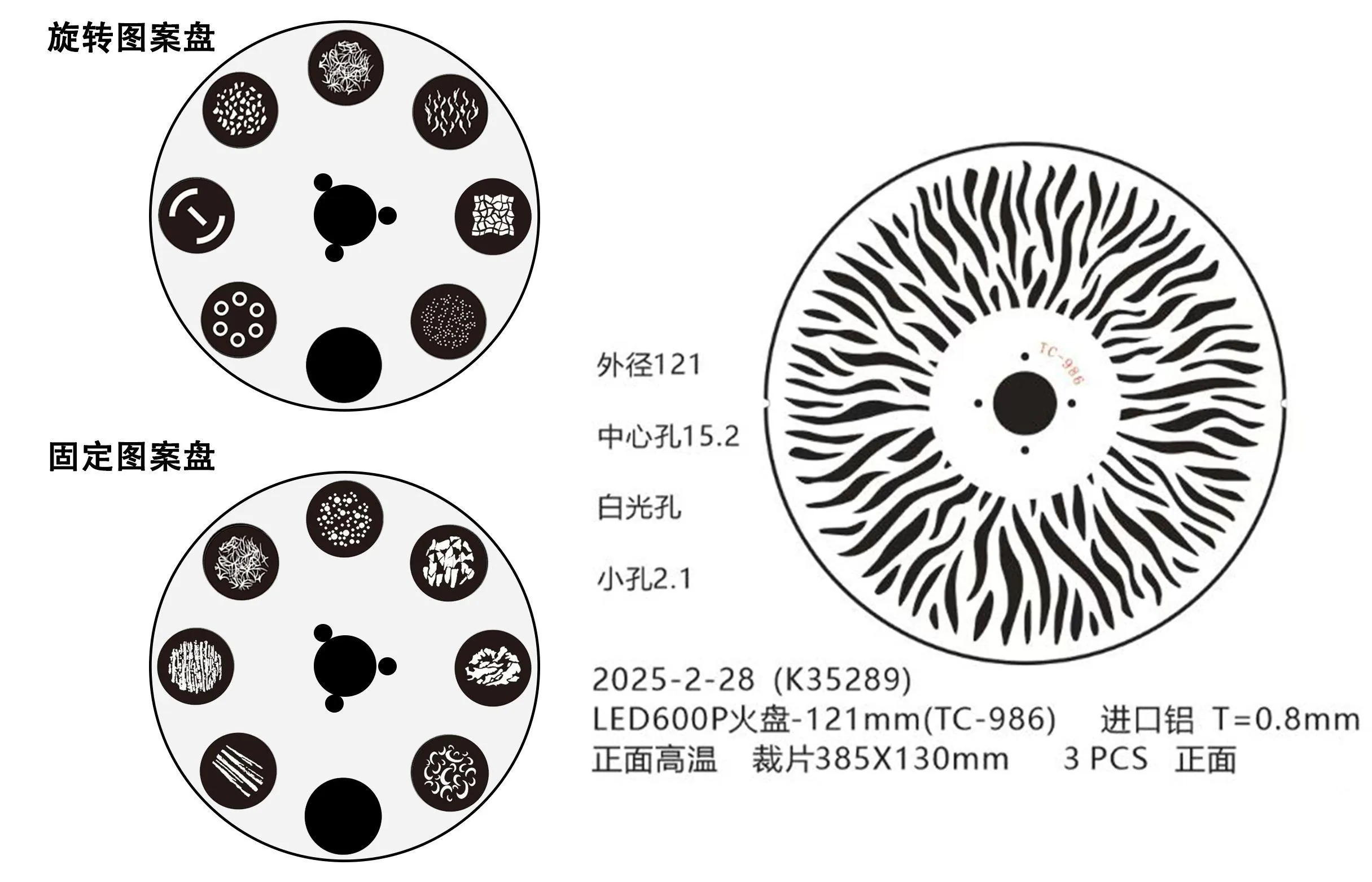

GOBO

Static gobo wheel:7 static gobos+open

Rotating gobo wheel: 7 interchangeable gobos +open

Animation wheel: dynamic effect like flame or water, etc.

COLOR

CTO:Color temperature can be linear adjusted (2500K-10000K)

DYNAMIC EFFECTS

Pan/Tilt: 540°,270°,16-bit control and automatic return correction

Prism: 3 facet prism

Focus:High-precision glass lenses, electronic linear HD focus

Iris: 5%-100% motorized linear iris adjustment

Dimmer：0-100% linear electornic dimming

Strobe:1-25Hz, synchronized, pulse effects

Frost:Independent frost effect,with light frost

CONTROL/PROGRAMMING

Channel: 30/47CH

Display: LCD display

Software:Update software by DMX connection

Control Mode: DMX 512, RDM, Artnet(Optional), Auto-running, Master/slave,

Sound active,Built-in program

OTHERS

IP class:IP20

Net Weight:40KG

Gross weight:45KG

Packing size:90.5x56x45.5CM
